TC-250-NF-LP-LC
ActivePasternack

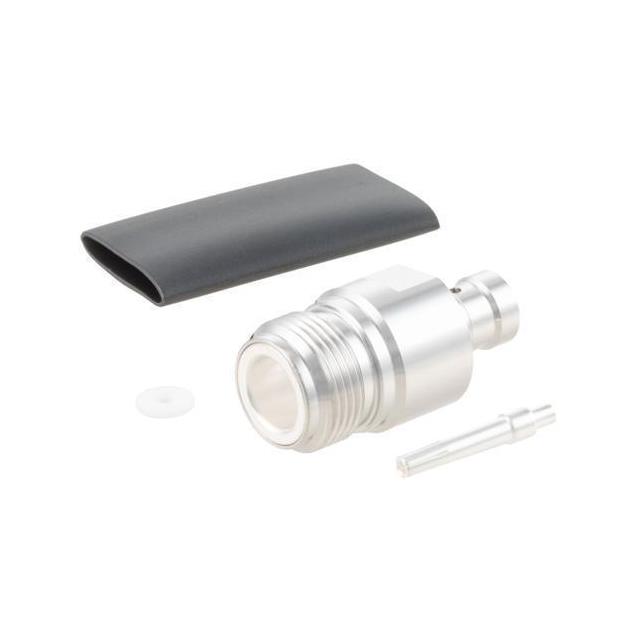

N FEMALE LOW PIM CONNECTOR SOLDE
TC-250-NF-LP-LC
ActivePasternack
N FEMALE LOW PIM CONNECTOR SOLDE
Description
General part information
TC-250-NF-LP-LC
N Type Connector Receptacle, Female Socket Free Hanging (In-Line) Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | TC-250-NF-LP-LC |
|---|---|
| Cable Group | SPF-250, SPP-250LLPL, SPO-250 |
| Center Contact Material | Brass |
| Center Contact Plating | Silver |
| Connector Style | N Type |
| Connector Type | Recepture, Female Socket |
| Contact Termination | Solder |
| Fastening Type | Threaded |
| Frequency - Max | 6000 MHz |
| Housing Color | Silver |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Solder |
