LCCA30728/YW-FT1
ActivePasternack
HD BNC M TO HD BNC M USING YELLO
LCCA30728/YW-FT1
ActivePasternack
HD BNC M TO HD BNC M USING YELLO
Description
General part information
LCCA30728/YW-FT1

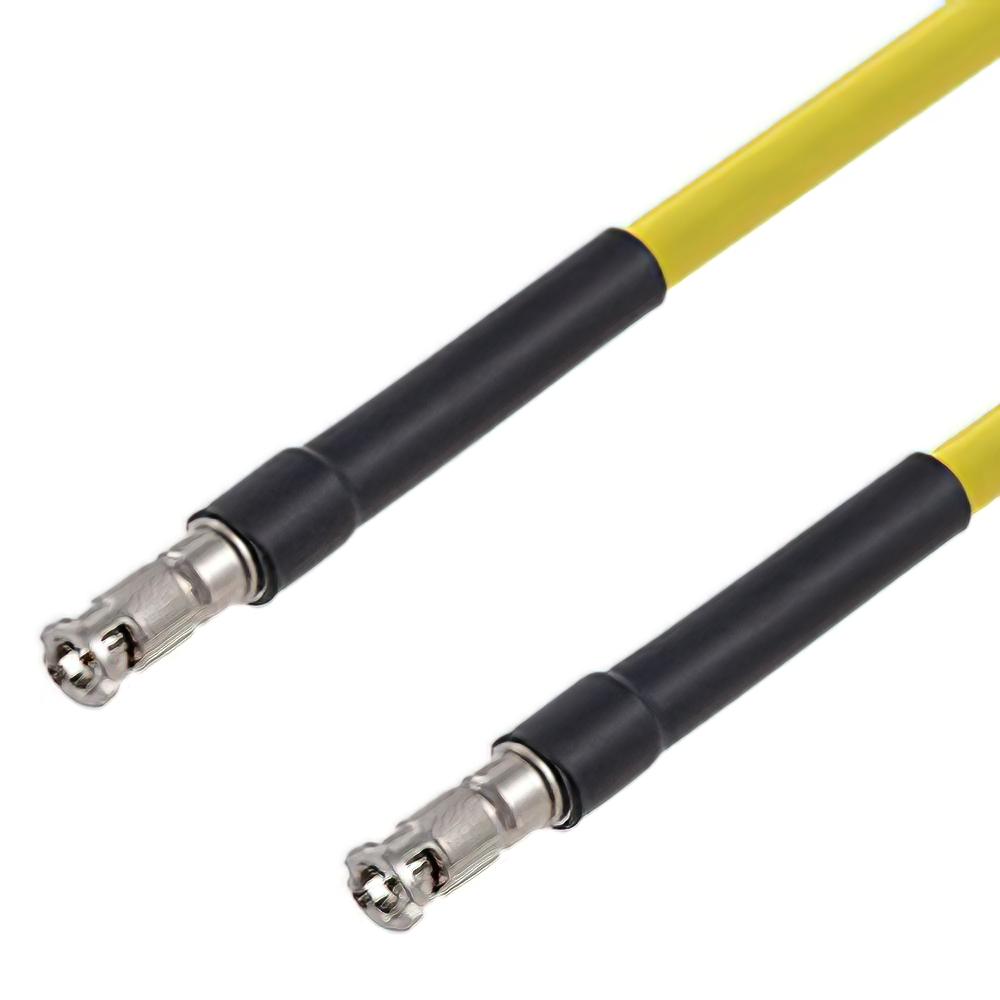

Cable Assembly Coaxial HD-BNC to HD-BNC Belden 4694R 12.00" (304.80mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30728/YW-FT1 |
|---|---|
| 1st Connector | HD-BNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | HD-BNC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 75 Ohms |
| Cable Type | Belden 4694R |
| Color | Yellow |
| Connector Impedance | 75 Ohms |
| Frequency - Max | 12 Gbps |
| Length | 12 in |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -30 °C |
| Overall Impedance | 75 Ohms |
| Style | HD-BNC |
