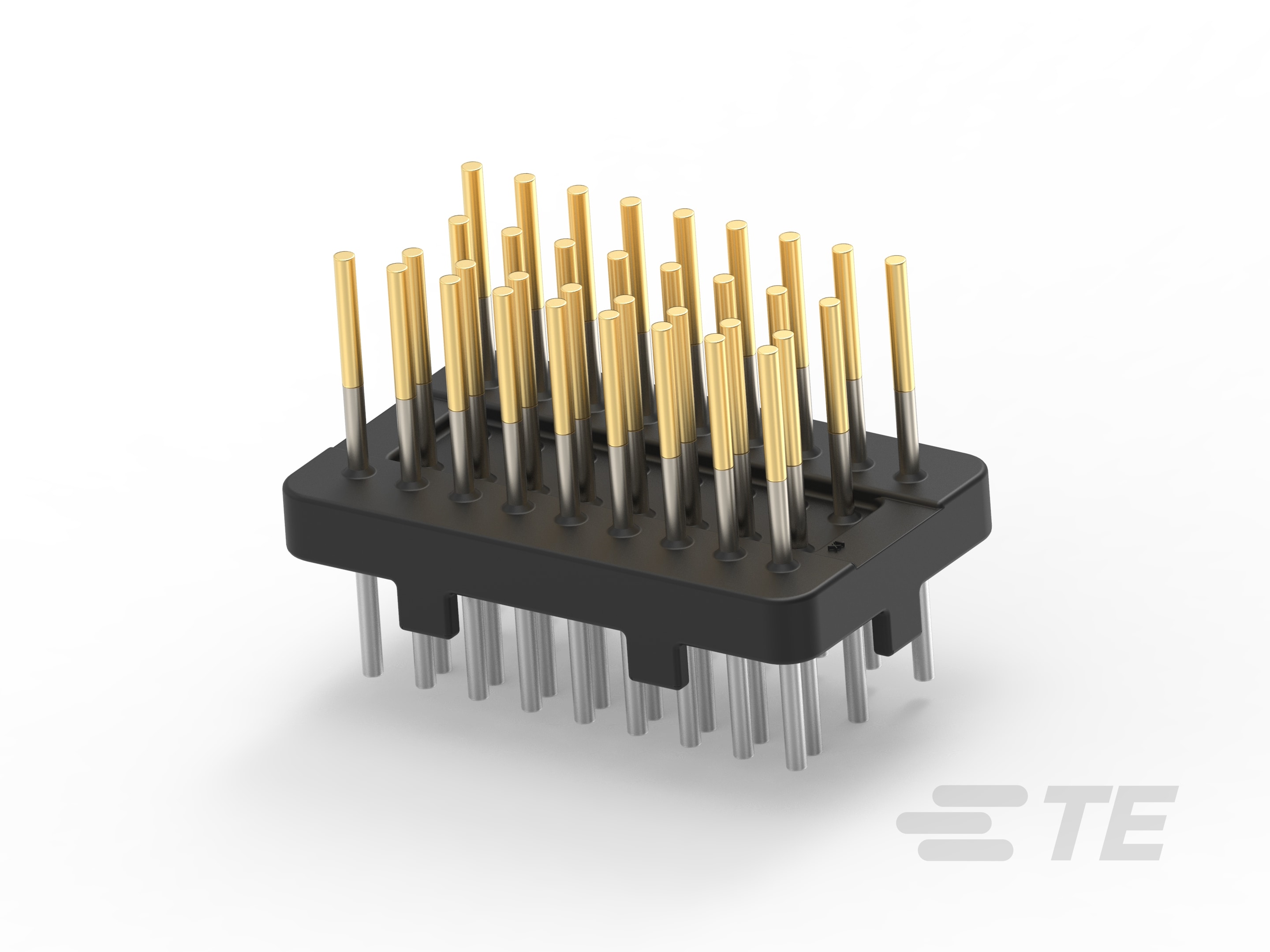

Specification	2303344-1

Connector Type	Header
Contact Finish - Mating	Gold
Contact Length - Post	0.217 in
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Through Hole
Number of Positions	34
Number of Positions Loaded	All
Number of Rows	4
Overall Contact Length	0.897 in
Pitch - Mating	0.087 in
Row Spacing - Mating	0.157 in
Shrouding	Unshrouded
Style	Cable/Wire, Board
Termination	Solder

SUPERSEAL 1.0mm Series

Part	Style	Number of Positions	Contact Material	Contact Finish - Mating	Pitch - Mating	Contact Length - Post	Insulation Height	Voltage Rating	Features	Current Rating	Current Rating	Mounting Type	Number of Positions Loaded	Insulation Material	Fastening Type	Operating Temperature (Max)	Operating Temperature (Min)	Contact Type	Number of Rows	Termination	Contact Shape	Shrouding	Contact Finish - Post	Connector Type	Applications	Insulation Color	Contact Termination	Material Flammability Rating	Overall Contact Length	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Type	Pin or Socket	Contact Finish	Color	Pitch
TE Connectivity AMP Connectors 2-6447232-3
TE Connectivity AMP Connectors 2-6447232-3	Board Cable/Wire	34	Brass	Gold	0.118 in	0.157 in	1.079 in	250 V	Mounting Flange Sealed	0 A	Varies by Wire Gauge	Through Hole	All	Polyester	Locking Ramp	125 °C	-40 °C	Male Pin	4	Solder	Circular	Shrouded - 4 Wall	Tin	Receptacle	Automotive
TE Connectivity AMP Connectors 2-6437285-5	Board Cable/Wire	34	Brass	Gold	0.118 in	0.157 in	1.079 in	250 V	Mounting Flange Sealed	0 A	Varies by Wire Gauge	Right Angle Through Hole	All	Polyester	Locking Ramp	125 °C	-40 °C	Male Pin	4	Solder	Circular	Shrouded - 4 Wall	Tin	Receptacle		Black
TE Connectivity AMP Connectors 1473712-1		26										Free Hanging (In-Line)		Polyphenylene Sulfide (PPS)	Latch Lock	125 °C	-40 °C	Female Socket	2					Plug			Crimp
TE Connectivity AMP Connectors 2303344-2	Board Cable/Wire	26	Copper Alloy	Gold	0.118 in			300 VAC/DC		3 A		Through Hole	All	Glass Filled Polybutylene Terephthalate (PBT)	Push-Pull	105 °C	-40 °C	Male Pin	4	Solder	Circular	Unshrouded	Gold	Header		Black		UL94 HB	0.897 in
TE Connectivity AMP Connectors 9-6437287-8	Board Cable/Wire	26	Brass	Gold	0.118 in	0.157 in	1.079 in	250 V	Mounting Flange			Right Angle Through Hole	All	Polyester	Locking Ramp	125 °C	-40 °C	Male Pin	4	Solder	Circular	Shrouded - 4 Wall	Tin	Header
TE Connectivity AMP Connectors 1-1437284-0																											Crimp			16 AWG	14 AWG	Stamped	Socket	Tin
TE Connectivity AMP Connectors 6473427-1	Board Cable/Wire	60	Brass	Gold	0.118 in	0.157 in	1.079 in	250 V	Mounting Flange Sealed	0 A	Varies by Wire Gauge	Right Angle Through Hole	All	Polyester	Locking Ramp	125 °C	-40 °C	Male Pin	4	Solder	Circular	Shrouded - 4 Wall	Tin	Receptacle	Automotive
TE Connectivity AMP Connectors 2389578-2		34							Sealed			Free Hanging (In-Line)		Glass Filled Polybutylene Terephthalate (PBT)	Latch Lock	125 °C	-40 °C	Female Socket	4					Plug			Crimp								Black	0.118 in
TE Connectivity AMP Connectors 2-1437285-2		26										Free Hanging (In-Line)		Polyester Thermoplastic	Latch Holder	125 °C	-40 °C	Female Socket	4					Plug			Crimp								Black	0.118 in
