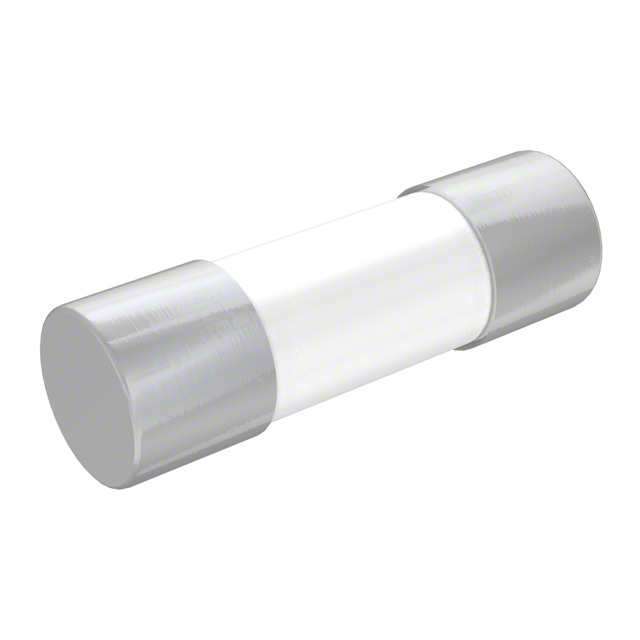

SC-12
ActiveEaton - Electronics Division
FUSE CERAMIC 12A 600VAC 170VDC
SC-12
ActiveEaton - Electronics Division
FUSE CERAMIC 12A 600VAC 170VDC
Description
General part information
SC-12
12 A 600 V AC 170 V DC Fuse Cartridge, Ceramic Requires Holder Cartridge, Non-Standard
Technical Specifications
Parameters and characteristics for this part
| Specification | SC-12 |
|---|---|
| Approval Agency | CE, UL, CSA |
| Breaking Capacity (AC) | 100 kA |
| Breaking Capacity (DC) | 10 kA |
| Current Rating | 12 A |
| Fuse Type | Cartridge, Ceramic |
| Mounting Type | Requires Holder |
| Package / Case | Cartridge, Non-Standard |
| Response Time | Slow Blow |
| Size / Dimension Diameter | 0.41 in |
| Size / Dimension Length | 1.31 in |
| Voltage Rating - AC | 600 VAC |
| Voltage Rating - DC | 170 VDC |
