NRS8040T221MJGK
ActiveTaiyo Yuden
FIXED IND 220UH 670MA 806MOHM SM
NRS8040T221MJGK
ActiveTaiyo Yuden
FIXED IND 220UH 670MA 806MOHM SM
Description
General part information
NRS8040T221MJGK

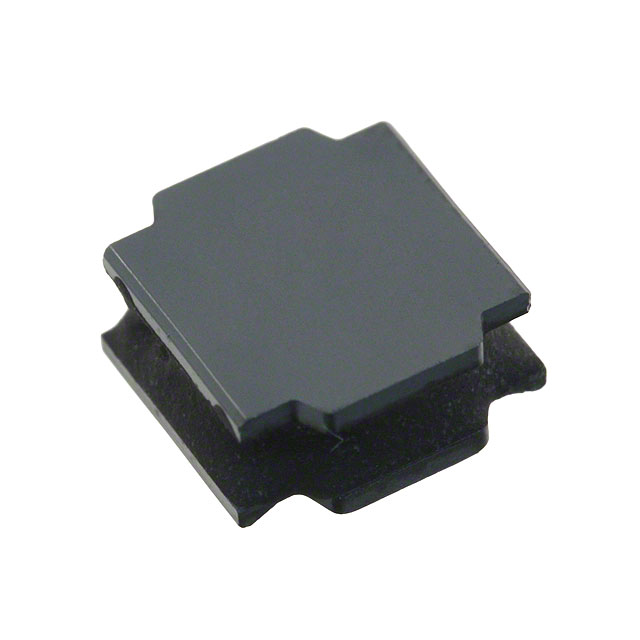

220 µH Shielded Drum Core, Wirewound Inductor 670 mA 806mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | NRS8040T221MJGK |
|---|---|
| Current - Saturation (Isat) | 0.7 mA |
| Current Rating | 0.67 A |
| DC Resistance (DCR) (Max) | 806 mOhm |
| Frequency - Self Resonant | 4 MHz |
| Height - Seated (Max) | 0.157 in |
| Inductance | 220 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Nonstandard |
| Shielding | Semi-Shielded, Shielded |
| Size / Dimension Length | 0.315 in |
| Size / Dimension Width | 0.315 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
