Description
General part information
JJL0E557MSEC

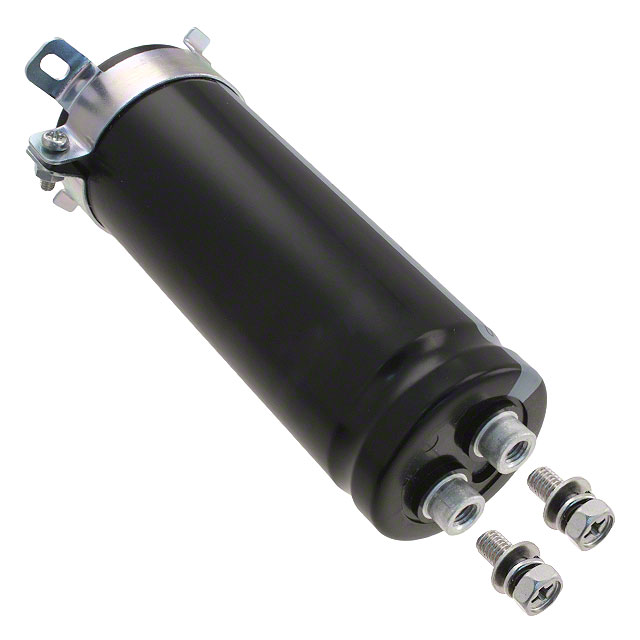

550 F (EDLC) Supercapacitor 2.5 V Radial, Can - Screw Terminals 5mOhm 2000 Hrs @ 60°C
Technical Specifications
Parameters and characteristics for this part
| Specification | JJL0E557MSEC |
|---|---|
| Capacitance | 550 F |
| ESR (Equivalent Series Resistance) | 5 mOhm |
| Height - Seated (Max) | 4.252 in |
| Lead Spacing | 0.5 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can - Screw Terminals, Radial |
| Size / Dimension Diameter | 1.378 in |
| Termination | Screw Terminals |
| Tolerance | 20 % |
| Voltage - Rated | 2.5 V |
