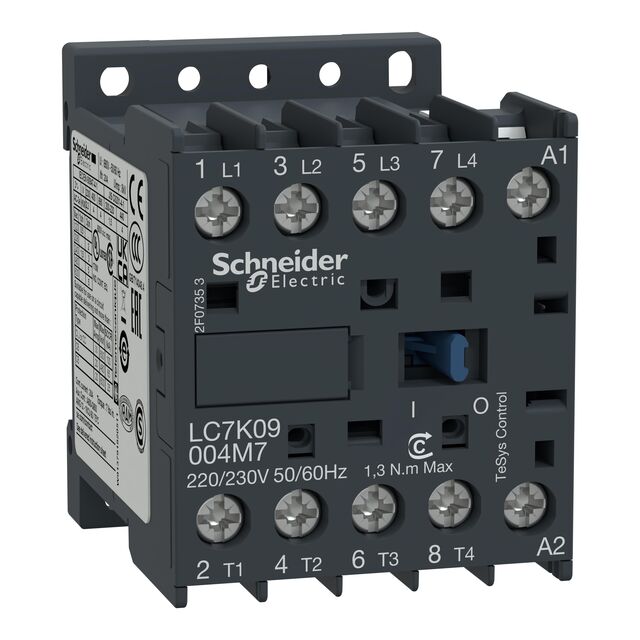

LC7K09004M7
ActiveSCHNEIDER ELECTRIC
CONTACTOR 575VAC 9AMP IEC OPTIONS ROHS COMPLIANT: YES
LC7K09004M7
ActiveSCHNEIDER ELECTRIC
CONTACTOR 575VAC 9AMP IEC OPTIONS ROHS COMPLIANT: YES
Description
General part information
LC7K09004M7
CONTACTOR 575VAC 9AMP IEC OPTIONS ROHS COMPLIANT: YES
Technical Specifications
Parameters and characteristics for this part
| Specification | LC7K09004M7 |
|---|---|
| Coil Voltage (Max) | 230 VAC/DC |
| Coil Voltage (Min) | 220 VAC |
| Contact Form | 4 Form A, PST-NO |
| Contact Rating (Current) | 20 A |
| Mounting Type | Chassis Mount, DIN Rail |
| Operate Time | 30 ms |
| Pin Count | 4 |
| Release Time | 40 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Termination Style | Screw Terminal |
