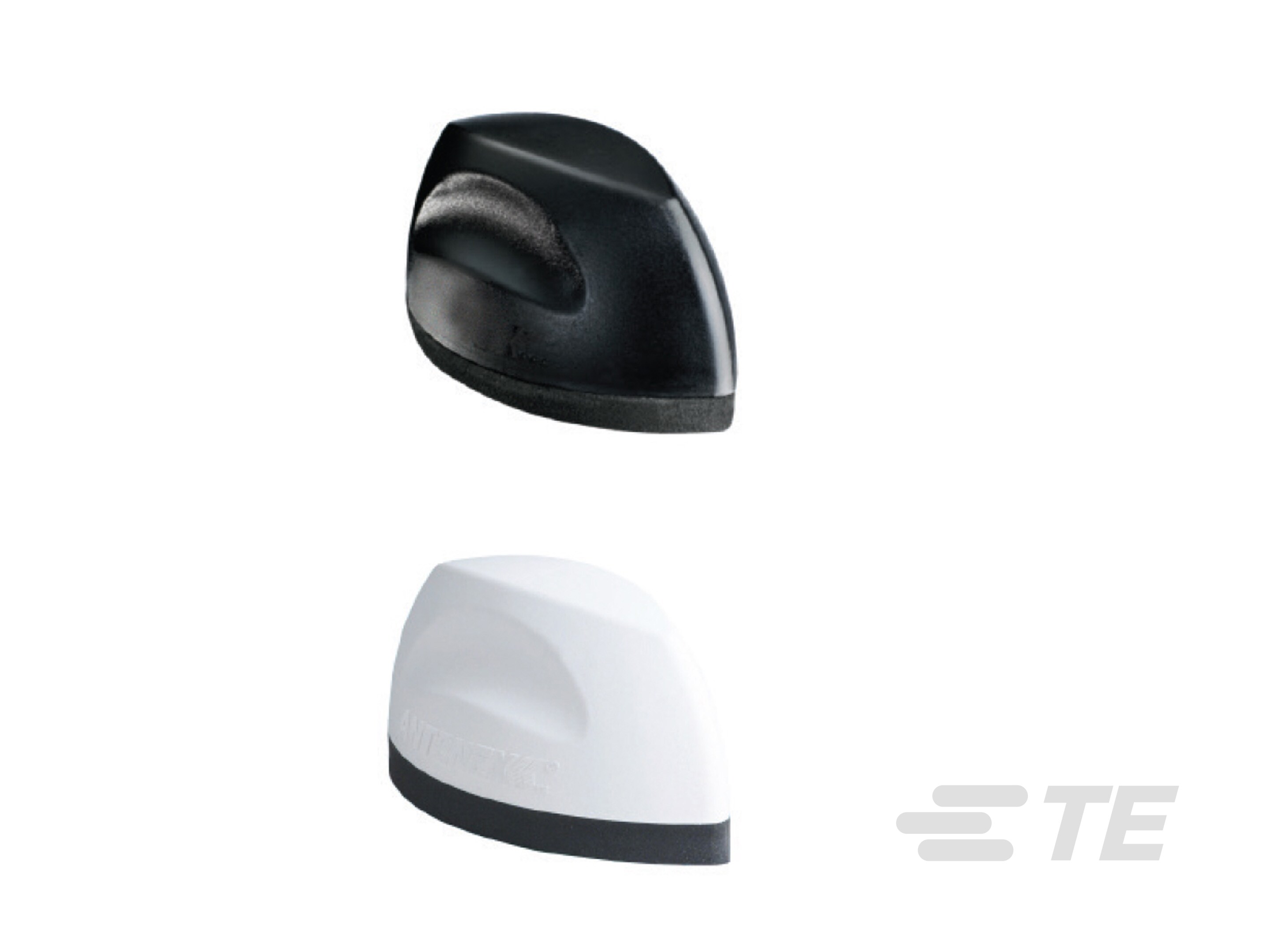

ETRAB1500
ActiveTE Connectivity AMP Connectors
OMNI,PHE,NMO,150-155 MHZ BLK,0,60,
ETRAB1500
ActiveTE Connectivity AMP Connectors
OMNI,PHE,NMO,150-155 MHZ BLK,0,60,
Description
General part information
ETRAB1500
Dome/Puck Antenna, Single Band, VHF, External Mount, Stud/Screw/Lug Mount, NMO, Omnidirectional, Single Port, 0 < 3 dBi Peak Gain
Technical Specifications
Parameters and characteristics for this part
| Specification | ETRAB1500 |
|---|---|
| Antenna Type | Dome |
| Frequency (Center/Band) | 153 MHz |
| Frequency Group | VHF |
| Frequency Group Maximum (VHF) | 300 MHz |
| Frequency Range (Max) | 155 MHz |
| Frequency Range (Min) | 150 MHz |
| Gain | 0 dB |
| Height (Max) | 2.375 in |
| Mounting Type | Base Mount |
| Number of Bands | 1 |
| Power - Max | 60 W |
| Termination | NMO |
