UTSX614E5PX
ActiveAmphenol Aerospace Operations
PLUG, WITHOUT BACKSHELL, WITH 5
UTSX614E5PX
ActiveAmphenol Aerospace Operations
PLUG, WITHOUT BACKSHELL, WITH 5
Description
General part information
UTSX614E5PX

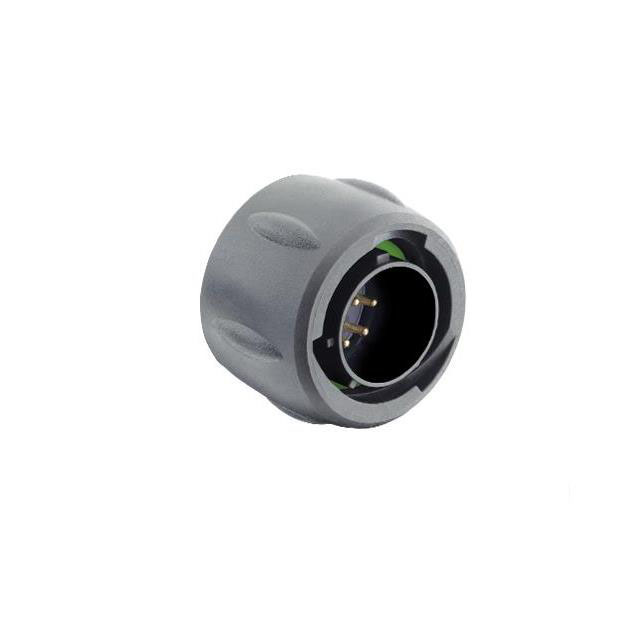

5 Position Circular Connector Plug, Male Pins Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | UTSX614E5PX |
|---|---|
| Color | Black |
| Connector Type | Male Pins, Plug |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Material | Brass |
| Current Rating | 12 A |
| Fastening Type | Bayonet Lock |
| Features | UV Resistant, Coupling Nut |
| Ingress Protection Description | Water Resistant, Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP69K, IP68 |
| Insert Material | Neoprene |
| Material Flammability Rating | UL94 HB |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 5 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | X |
| Primary Material | Plastic |
| Shell Material | Nylon, Polyamide (PA) |
| Shell Size - Insert Length | 14 mm |
| Shell Size - Insert Width | 5 mm |
| Shielding | Unshielded |
| Termination | Solder Cup |
| Voltage Rating | 600 V |
