PF2203-0R015J1
ActiveBourns Inc.
RES 0.015 OHM 5% 35W TO220
PF2203-0R015J1
ActiveBourns Inc.
RES 0.015 OHM 5% 35W TO220
Description
General part information
PF2203-0R015J1
15 mOhms ±5% 35W Through Hole Resistor TO-220-2 Current Sense, Flame Proof, Pulse Withstanding, Safety Thin Film
Technical Specifications
Parameters and characteristics for this part
| Specification | PF2203-0R015J1 |
|---|---|
| Composition | Thin Film, Thick Film |
| Features | Safety, Pulse Withstanding, Current Sense, Flame Proof |
| Height - Seated (Max) | 0.591 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |

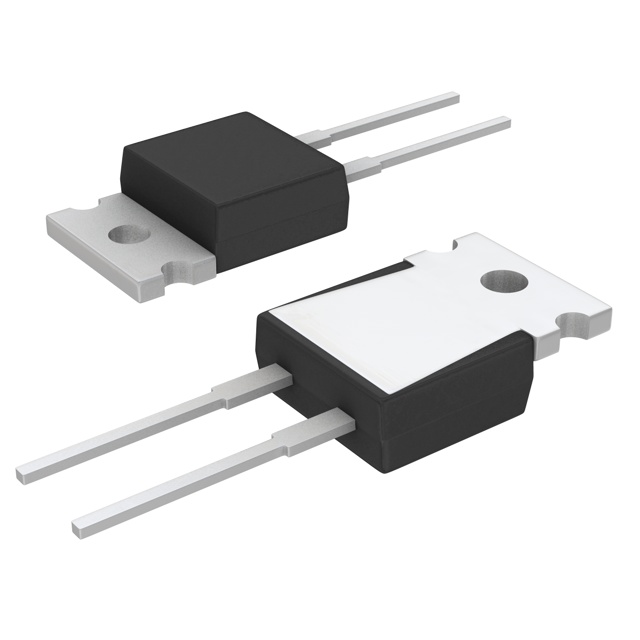

| Package / Case | TO-220-2 |
| Package Name | TO-220 |
| Power (Watts) | 35 W |
| Resistance | 15 mOhms |
| Size / Dimension Length | 0.417 in |
| Size / Dimension Width | 0.177 in |
| Temperature Coefficient | 250 ppm/°C |
| Temperature Coefficient (Highest) | 250 ppm/°C |
| Temperature Coefficient (Lowest) | -250 ppm/°C |
| Tolerance | 5 % |
