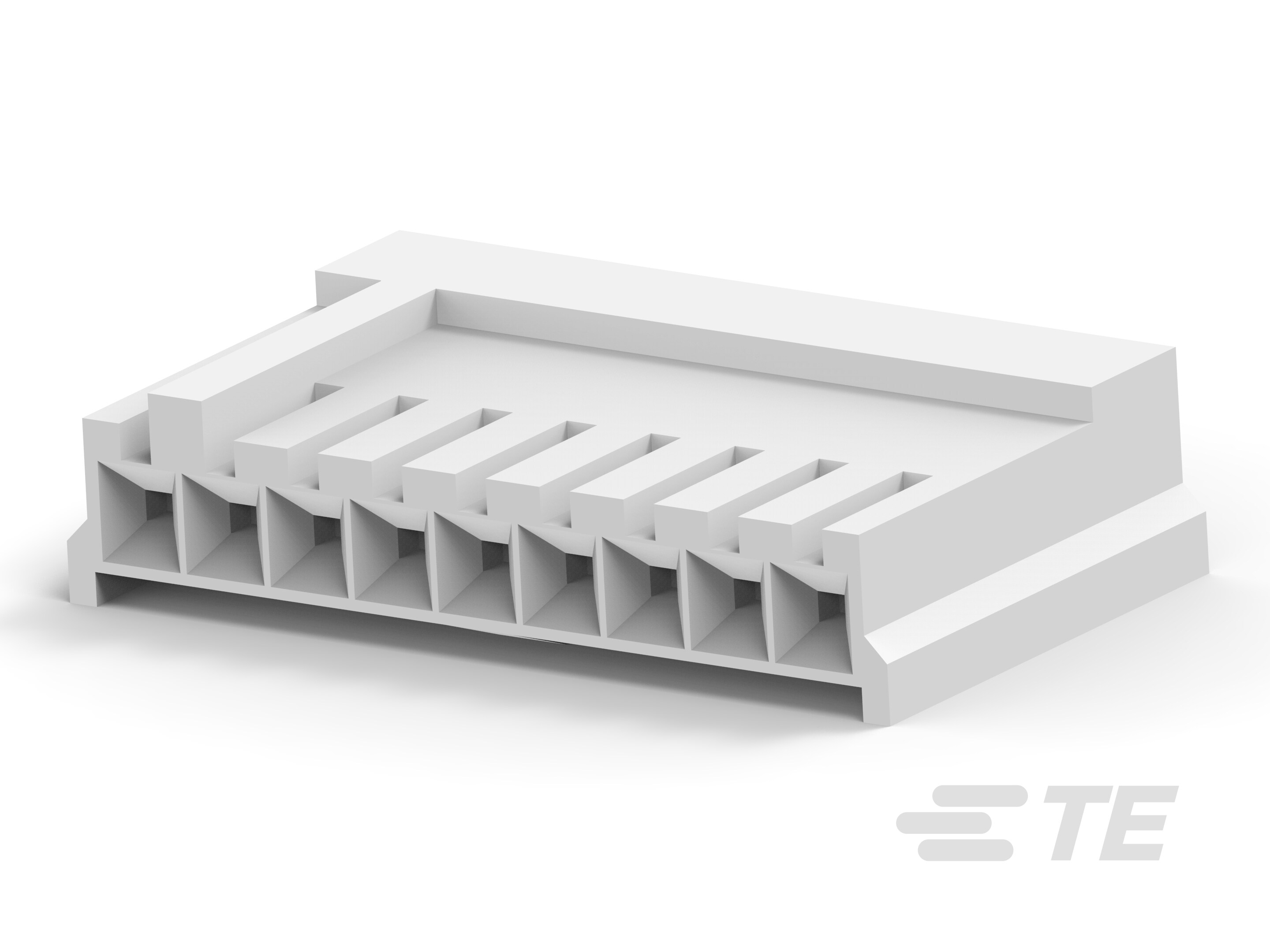

Specification	171822-9

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	9
Number of Rows	1
Operating Temperature (Max)	95 °C
Operating Temperature (Min)	-20 °C
Pitch	0.098 in

171822 Series

Part	Note	Number of Rows	Number of Positions	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Connector Type	Insulation Material	Pitch	Color	Contact Type	Contact Termination
TE Connectivity AMP Connectors 2-171822-8	Contacts Not Included	1	8	95 °C	-20 °C	Free Hanging (In-Line)	Receptacle	Nylon 6/6 Polyamide (PA66)	0.098 in	Black	Female Socket	Crimp
TE Connectivity AMP Connectors 171822-2	Contacts Not Included	1	2	95 °C	-20 °C	Free Hanging (In-Line)	Receptacle	Nylon 6/6 Polyamide (PA66)	0.098 in	Natural	Female Socket	Crimp
TE Connectivity AMP Connectors 1-171822-0	Contacts Not Included	1	10	95 °C	-20 °C	Free Hanging (In-Line)	Receptacle	Nylon 6/6 Polyamide (PA66)	0.098 in	Natural	Female Socket	Crimp
TE Connectivity AMP Connectors 4-171822-2	Contacts Not Included	1	2	95 °C	-20 °C	Free Hanging (In-Line)	Receptacle	Nylon 6/6 Polyamide (PA66)	0.098 in	Blue	Female Socket	Crimp
TE Connectivity AMP Connectors 171822-8	Contacts Not Included	1	8	95 °C	-20 °C	Free Hanging (In-Line)	Receptacle	Nylon 6/6 Polyamide (PA66)	0.098 in	Natural	Female Socket	Crimp
TE Connectivity AMP Connectors 4-171822-6	Contacts Not Included	1	6	95 °C	-20 °C	Free Hanging (In-Line)	Receptacle	Nylon 6/6 Polyamide (PA66)	0.098 in	Blue	Female Socket	Crimp
TE Connectivity AMP Connectors 8-171822-3	Contacts Not Included	1	3	95 °C	-20 °C	Free Hanging (In-Line)	Receptacle	Nylon 6/6 Polyamide (PA66)	0.098 in	Red	Female Socket	Crimp
TE Connectivity AMP Connectors 2-171822-5	Contacts Not Included	1	5	95 °C	-20 °C	Free Hanging (In-Line)	Receptacle	Nylon 6/6 Polyamide (PA66)	0.098 in	Black	Female Socket	Crimp
TE Connectivity AMP Connectors 6-171822-4	Contacts Not Included	1	4	95 °C	-20 °C	Free Hanging (In-Line)	Receptacle	Nylon 6/6 Polyamide (PA66)	0.098 in	Green	Female Socket	Crimp
TE Connectivity AMP Connectors 171822-3	Contacts Not Included	1	3	95 °C	-20 °C	Free Hanging (In-Line)	Receptacle	Nylon 6/6 Polyamide (PA66)	0.098 in	Natural	Female Socket	Crimp
