Description

General part information

8-34104-1

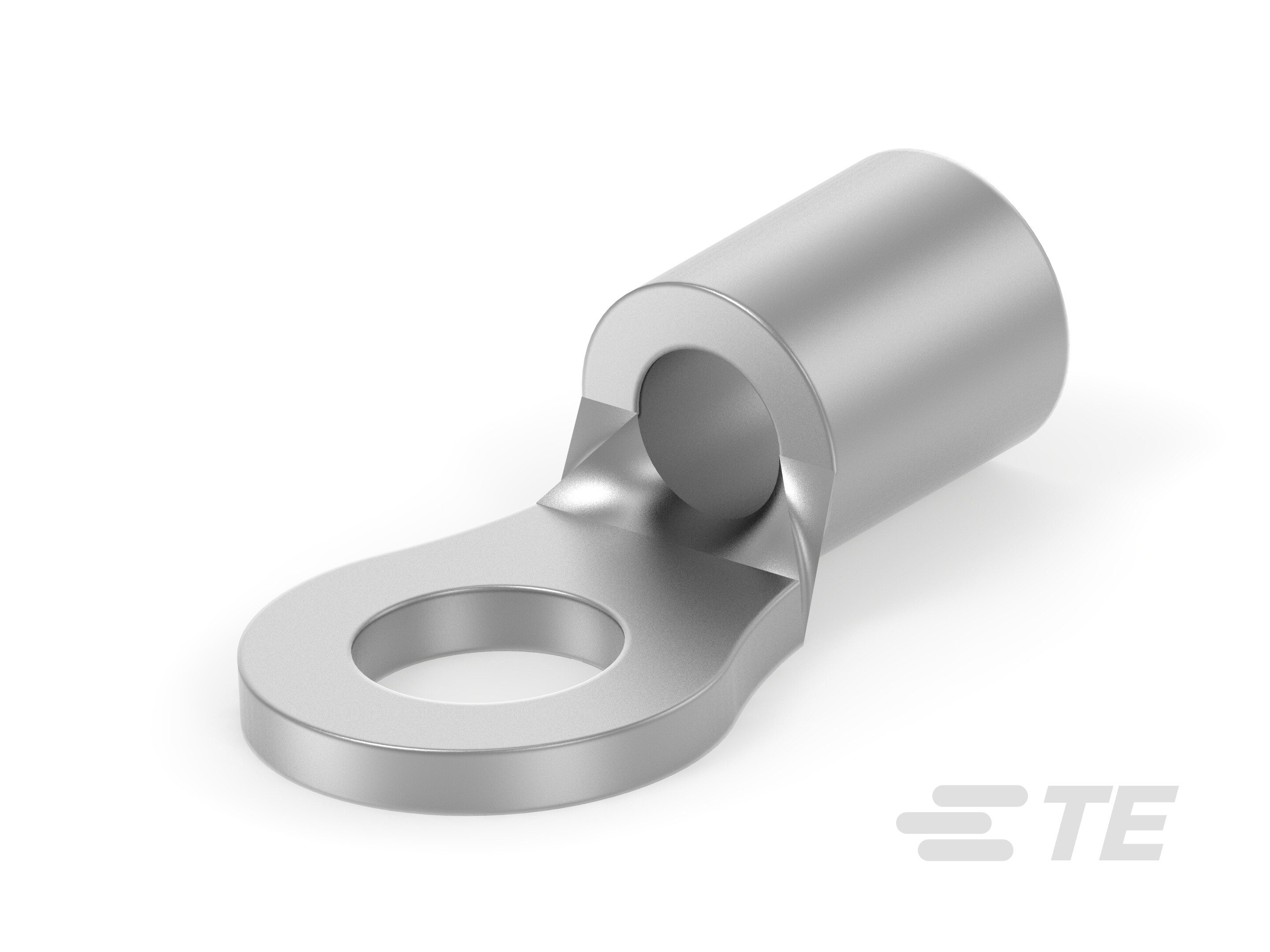

Closed Ring Tongue Terminal, 22 – 16 AWG, #4 / M2.5 Stud, 3.02 mm [.119 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Uninsulated

Technical Specifications

Parameters and characteristics for this part

Specification8-34104-1
Contact FinishTin
Contact MaterialCopper
FeaturesSerrated Termination, Brazed Seam
InsulationNon-Insulated
Length - Overall0.449 in
Mounting TypeFree Hanging (In-Line)
Stud/Tab Size4 Stud
Terminal TypeCircular
TerminationCrimp
Thickness0.031 in
Width - Outer Edges0.218 in
Wire Gauge (AWG) (Max)22 AWG
Wire Gauge (AWG) (Min)16 AWG
