DFJ-500

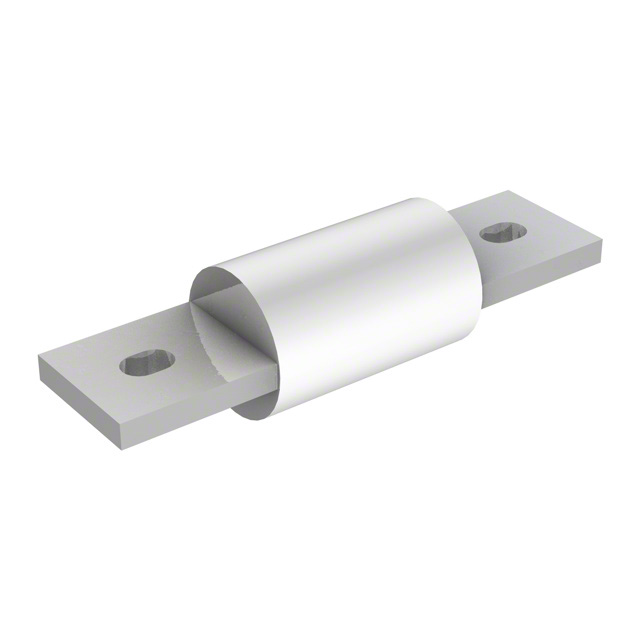

500A 600 VAC 450 VDC Fuse Cartridge Bolt Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | DFJ-500 |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | CE, UL, CSA |
| Breaking Capacity (AC) | 200 kA |
| Breaking Capacity (DC) | 100 kA |
| Class | J |
| Current Rating | 500 A |
| Fuse Type | Cartridge |
| Melting I²t | 79500 |
| Mounting Type | Bolt Mount |
| Package / Case | Blade Terminal (Bolt), Cylindrical |
| Size / Dimension Diameter | 2.5 in |
| Size / Dimension Length | 95.25 mm |
| Voltage Rating - AC | 600 VAC |
| Voltage Rating - DC | 450 V |
