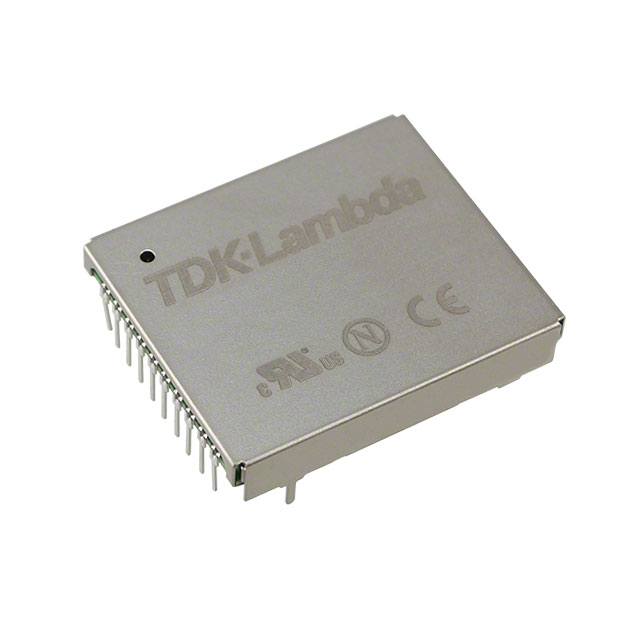

CC15-2405SF-E
ObsoleteTDK Corporation
DC DC CONVERTER 5V 15W
CC15-2405SF-E
ObsoleteTDK Corporation
DC DC CONVERTER 5V 15W
Description
General part information
CC15-2405SF-E
Isolated Module DC DC Converter 1 Output 5V 3A 18V - 36V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | CC15-2405SF-E |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) | 3 A |
| Efficiency | 89 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 17-DIP Module |
| Power (Watts) | 15 W |
| Size / Dimension Height | 0.28 in |
| Size / Dimension Length | 1.5 in |
| Size / Dimension Width | 1.26 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 36 V |
| Voltage - Input (Min) | 18 V |
| Voltage - Isolation | 500 V |
| Voltage - Output 1 | 5 V |
