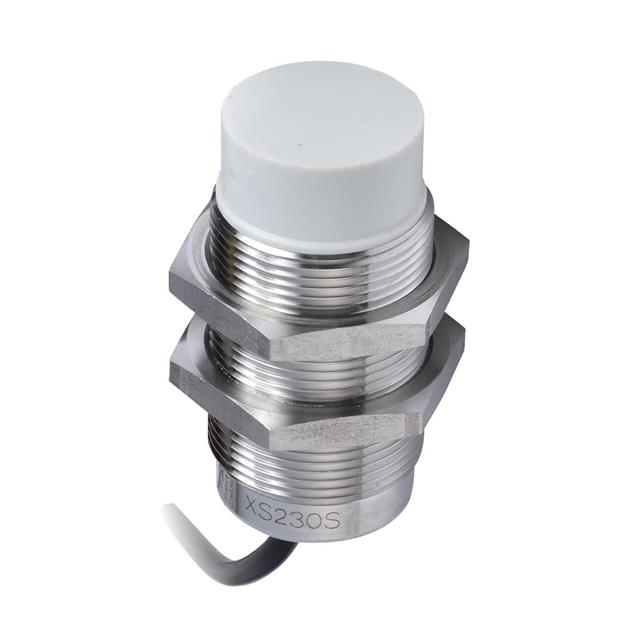

XS230SAMAL2
ActiveSCHNEIDER ELECTRIC
INDUCTIVE PROXIMITY SENSOR, OSISENSE XS, M30, 22 MM, SPST-NO, 24 TO 240 VAC/DC, PRE-WIRED
XS230SAMAL2
ActiveSCHNEIDER ELECTRIC
INDUCTIVE PROXIMITY SENSOR, OSISENSE XS, M30, 22 MM, SPST-NO, 24 TO 240 VAC/DC, PRE-WIRED
Description
General part information
XS230SAMAL2
Inductive Proximity Sensor 0.866" (22mm) IP68, IP69K Cylinder, Threaded - M30
Technical Specifications
Parameters and characteristics for this part
| Specification | XS230SAMAL2 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP68, IP69K |
| Material - Body | Stainless Steel |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | NO, 2-Wire |
| Package / Case | Cylinder, Threaded - M30 |
| Sensing Distance | 0.866 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable Leads |
| Voltage - Supply (Maximum) | 240 VAC |
| Voltage - Supply (Minimum) | 24 VAC |
