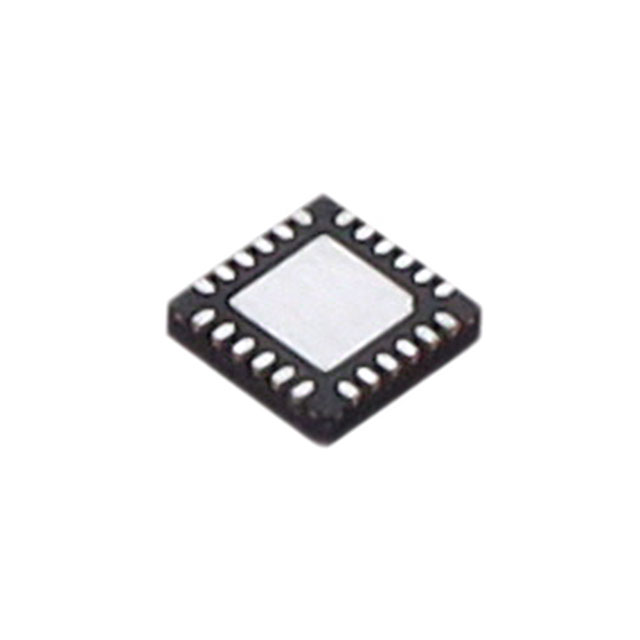

AEAT-9922-Q24
ActiveBroadcom Limited
18BITS MAG ENC ON-OFF AXIS
AEAT-9922-Q24
ActiveBroadcom Limited
18BITS MAG ENC ON-OFF AXIS
Description
General part information
AEAT-9922-Q24
Rotary Encoder Magnetic Programmable PWM
Technical Specifications
Parameters and characteristics for this part
| Specification | AEAT-9922-Q24 |
|---|---|
| Built in Switch | No |
| Detent | No |
| Encoder Type | Magnetic |
| Output Type | PWM |
| Pulses per Revolution | Programmable |
| Voltage - Supply (Range 1 Maximum) | 3.6 V |
| Voltage - Supply (Range 1 Minimum) | 3 V |
| Voltage - Supply (Range 2 Maximum) | 5.5 V |
| Voltage - Supply (Range 2 Minimum) | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
