Description
General part information

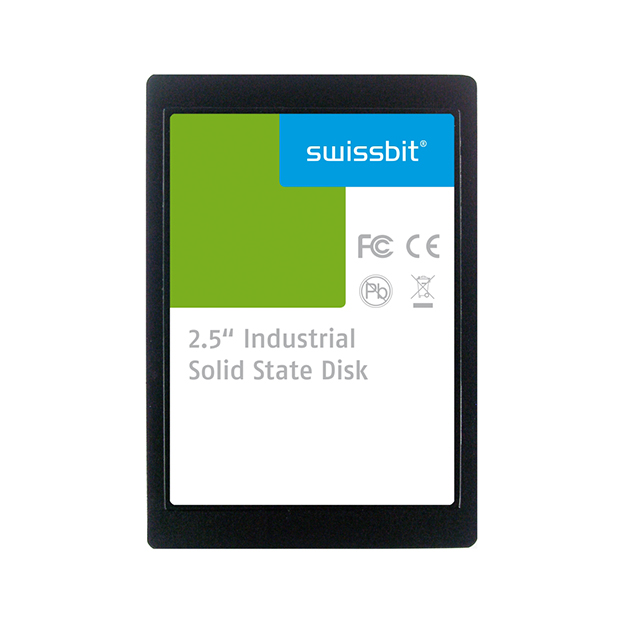

SFSA4096Q1BR4TO-C-MS-236-STD
Solid State Drive (SSD) FLASH - NAND (SLC) 4GB SATA II 2.5" 5V
Technical Specifications
Parameters and characteristics for this part
| Specification | SFSA4096Q1BR4TO-C-MS-236-STD |
|---|---|
| Form Factor Size | 2.5 in |
| Memory Size | 4 GByte |
| Memory Type | Solid State Drive (SSD) FLASH - NAND (SLC) |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Size / Dimension Height | 9.2 mm |
| Size / Dimension Length | 100.1 mm |
| Size / Dimension Width | 69.85 mm |
| Speed - Read | 120 MB/s |
| Speed - Write | 95 MB/s |
| Type | SATA II |
| Voltage - Supply | 5 VDC |
| Weight | 3.17 oz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
