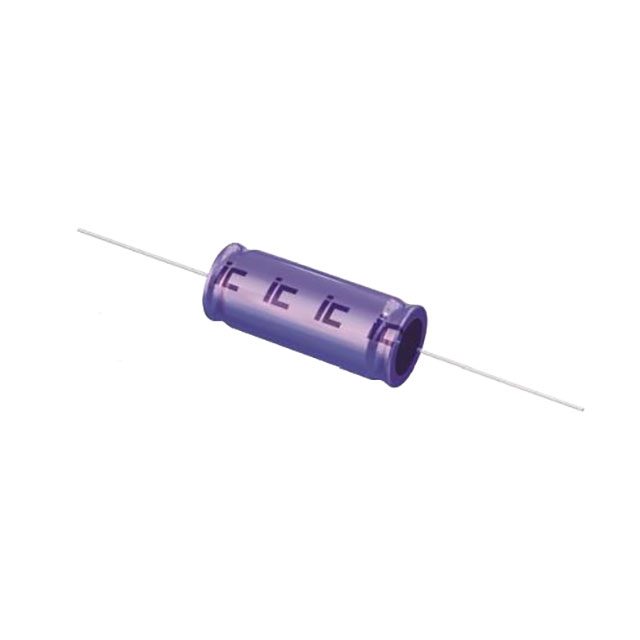

Specification	477BPA016M

Applications	Audio
Capacitance	470 µF
ESR (Equivalent Series Resistance)	776 mOhm
Lifetime	2000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can, Axial
Polarization	Bi-Polar
Ripple Current	841.85 mA, 565 mA
Size / Dimension Diameter	0.394 in
Size / Dimension Length	1.181 in
Tolerance	20 %
Voltage - Rated	16 V
