1241.1625.51

Active

SCHURTER Inc.

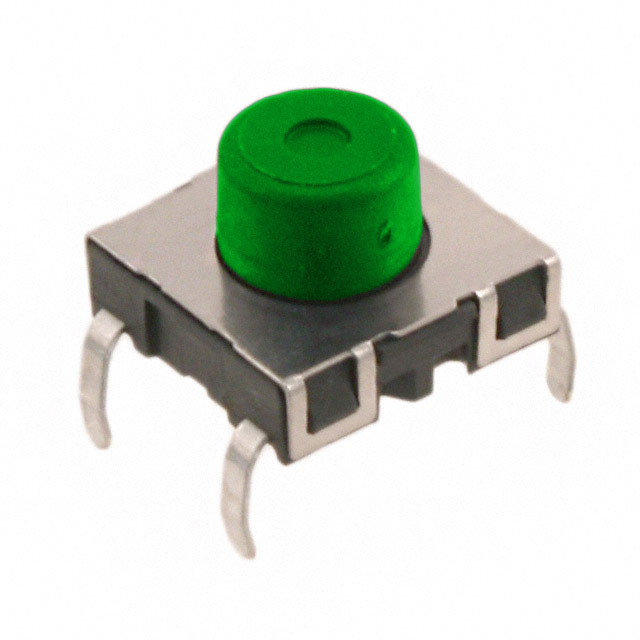

SWITCH TACTILE SPST-NO 0.05A 42V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1241.1625.51

Active

SCHURTER Inc.

SWITCH TACTILE SPST-NO 0.05A 42V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1241.1625.51	1241.1625 Series

Actuator Height off PCB, Vertical	-	13.6 - 16.6 mm
Actuator Height off PCB, Vertical	-	8.35 - 12.85 mm
Actuator Material	Polyphenylene Sulfide (PPS)	Polyphenylene Sulfide (PPS)
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Round Button	Round Button, Standard
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	42 VDC, 0.05 A	0.05 - 42 VDC
Features	Tactile Feedback	Tactile Feedback
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles	1000000 Cycles
Mounting Type	Through Hole	Through Hole
Operating Force	220 gf	220 gf
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outline [x]	11.4 mm	11.4 mm
Outline [y]	11.4 mm	11.4 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.35 mm	0.35 mm
Termination Style	PC Pin	PC Pin

1241.1625 Series

SWITCH TACTILE SPST-NO 0.05A 42V

Part	Mechanical Life	Actuator Type	Ingress Protection	Features	Contact Rating @ Voltage	Operating Force	Actuator Material	Termination Style	Switch Function	Mounting Type	Illumination	Outline [y]	Outline [x]	Circuit	Switch Travel	Actuator Height off PCB, Vertical [z]	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Orientation	Actuator Height off PCB, Vertical
SCHURTER Inc. 1241.1625.41	1000000 Cycles	Round Button	IP67 - Dust Tight, Waterproof	Tactile Feedback	0.05 A, 42 VDC	220 gf	Polyphenylene Sulfide (PPS)	PC Pin	Off-Mom	Through Hole	Non-Illuminated	11.4 mm	11.4 mm	SPST-NO	0.35 mm	16.6 mm	85 °C	-40 °C	Top Actuated
SCHURTER Inc. 1241.1625.1	1000000 Cycles	Standard	IP67 - Dust Tight, Waterproof	Tactile Feedback	0.05 A, 42 VDC	220 gf	Polyphenylene Sulfide (PPS)	PC Pin	Off-Mom	Through Hole	Non-Illuminated	11.4 mm	11.4 mm	SPST-NO	0.35 mm		85 °C	-40 °C	Top Actuated	8.35 mm
SCHURTER Inc. 1241.1625.51	1000000 Cycles	Round Button	IP67 - Dust Tight, Waterproof	Tactile Feedback	0.05 A, 42 VDC	220 gf	Polyphenylene Sulfide (PPS)	PC Pin	Off-Mom	Through Hole	Non-Illuminated	11.4 mm	11.4 mm	SPST-NO	0.35 mm		85 °C	-40 °C	Top Actuated
SCHURTER Inc. 1241.1625.8	1000000 Cycles	Standard	IP67 - Dust Tight, Waterproof	Tactile Feedback	0.05 A, 42 VDC	220 gf	Polyphenylene Sulfide (PPS)	PC Pin	Off-Mom	Through Hole	Non-Illuminated	11.4 mm	11.4 mm	SPST-NO	0.35 mm	13.6 mm	85 °C	-40 °C	Top Actuated
SCHURTER Inc. 1241.1625.7	1000000 Cycles	Standard	IP67 - Dust Tight, Waterproof	Tactile Feedback	0.05 A, 42 VDC	220 gf	Polyphenylene Sulfide (PPS)	PC Pin	Off-Mom	Through Hole	Non-Illuminated	11.4 mm	11.4 mm	SPST-NO	0.35 mm		85 °C	-40 °C	Top Actuated	12.85 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.19
		50	$ 3.12
		100	$ 2.59

Description

General part information

1241.1625 Series

Tactile Switch SPST-NO Top Actuated Through Hole
