RST-W1B6-10808-22M-FY-001
ActiveRaltron Electronics

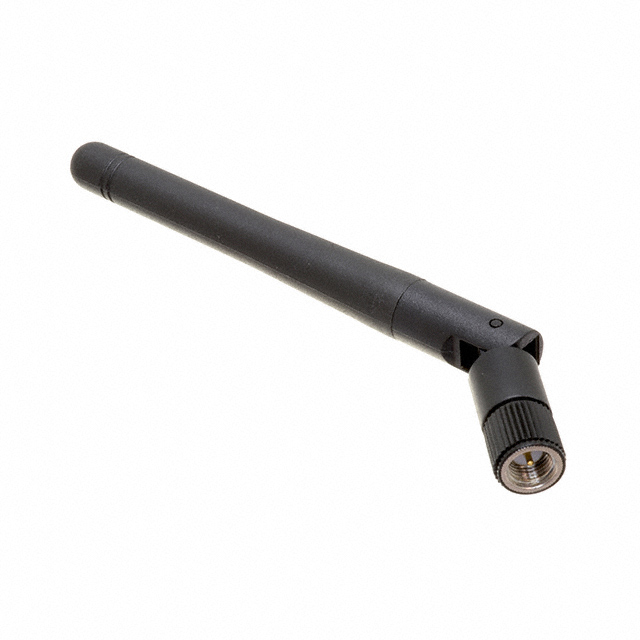

RF ANT 915MHZ WHIP RA SMA 108MM
RST-W1B6-10808-22M-FY-001
ActiveRaltron Electronics
RF ANT 915MHZ WHIP RA SMA 108MM
Description
General part information
RST-W1B6-10808-22M-FY-001
RF ANTENNA Whip, Tilt SMA Male Connector Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | RST-W1B6-10808-22M-FY-001 |
|---|---|
| Antenna Type | Tilt, Whip |
| Frequency (Center/Band) | 915 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz |
| Gain | 2 dBi |
| Height (Max) | 4.252 in |
| Mounting Type | Connector Mount |
| Number of Bands | 1 |
| Power - Max | 1 VA |
| Return Loss | -10 dB |
| Termination Type | SMA Male |
| VSWR | 2 |
