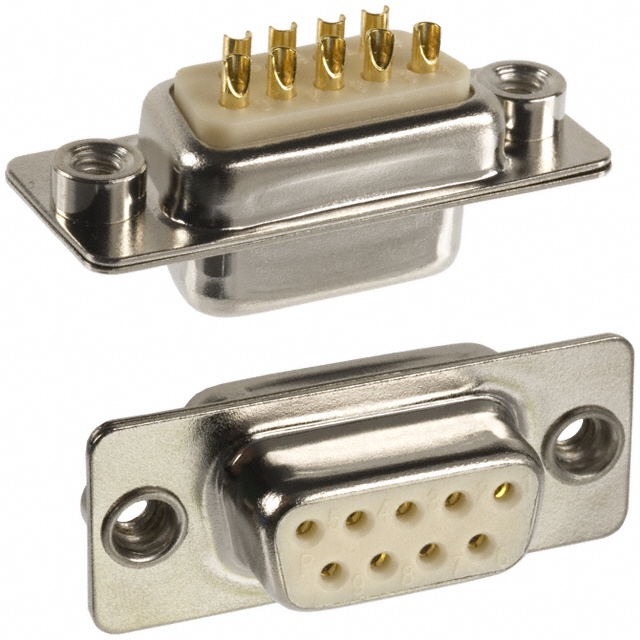

172-E09-203R011 - 172-E09-203R011

172-E09-203R011

Active
MH Connectors

D SUB CONN, RCPT, 9POS, DE, SLDR CUP ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBackshell Reference GuideDatasheet+2
172-E09-203R011 - 172-E09-203R011

172-E09-203R011

Active
MH Connectors

D SUB CONN, RCPT, 9POS, DE, SLDR CUP ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsBackshell Reference GuideDatasheet+2

Technical Specifications

Parameters and characteristics for this part

Specification172-E09-203R011
ColorWhite
Connector StyleD-Sub
Connector TypeReceptacle, Female Sockets
Contact FinishGold
Contact Finish ThicknessFlash
Contact MaterialBrass
Contact TypeSignal
Current Rating (Amps)5 A
Dielectric MaterialPolybutylene Terephthalate (PBT)
Flange FeatureCable Side
Material Flammability RatingUL94 V-0
Number of Positions9
Number of Rows2
Shell Material, FinishNickel Plated, Steel
Shell Size, Connector Layout [custom]DE, E
Shell Size, Connector Layout [custom]1
Wire Gauge [Max]26 AWG
Wire Gauge [Min]20 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 4.33
10$ 3.68
25$ 3.45
50$ 3.29
100$ 3.13
250$ 2.93
500$ 2.79
1000$ 2.66
2500$ 2.49
NewarkEach 1$ 5.21
10$ 3.57
25$ 3.32
50$ 3.17
100$ 3.05
250$ 2.85
500$ 2.64
1000$ 2.47

Description

General part information

172-E09-203R011

9 Position D-Sub Receptacle, Female Sockets Connector
