A 24-LC-TT

Active

Assmann WSW Components

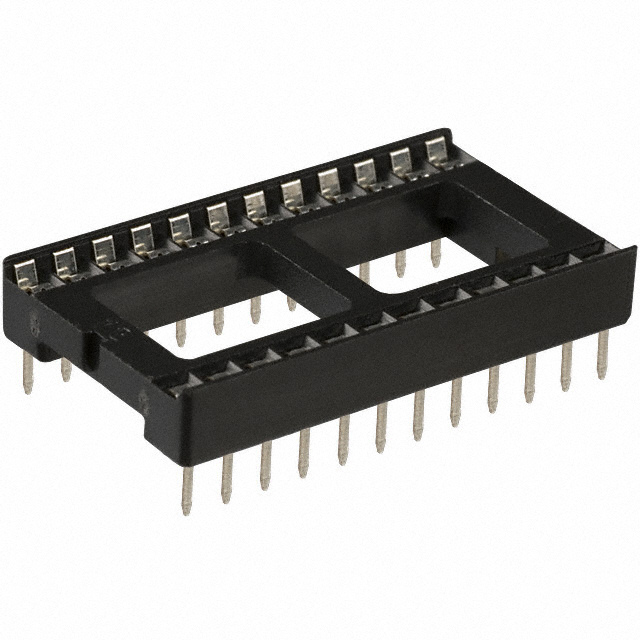

CONN IC DIP SOCKET 24POS TIN

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN IC DIP SOCKET 24POS TIN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A 24-LC-TT	A 24-LC Series

Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	-	60 Áin
Contact Finish Thickness - Mating	-	1.52 Ám
Contact Finish Thickness - Post	-	60 µin
Contact Finish Thickness - Post	-	1.52 µm
Contact Material - Mating	Phosphor Bronze	Phosphor Bronze
Contact Material - Post	Phosphor Bronze	Phosphor Bronze
Contact Resistance	30 mOhm	30 mOhm
Current Rating (Amps)	1 A	1 A
Features	Open Frame	Open Frame
Housing Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions or Pins (Grid)	24	24
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Pitch - Post	2.54 mm	2.54 mm
Pitch - Post	0.1 in	0.1 in
Termination	Solder	Solder
Termination Post Length	3.15 mm	3.15 mm
Termination Post Length	0.124 in	0.124 in
Type	DIP	DIP
Type	0.6 in	0.3 - 0.6 in
Type	15.24 mm	7.62 - 15.24 mm

CONN IC DIP SOCKET 24POS TIN

Part	Features	Contact Resistance	Mounting Type	Current Rating (Amps)	Material Flammability Rating	Termination	Number of Positions or Pins (Grid)	Operating Temperature [Max]	Operating Temperature [Min]	Type	Type	Type	Contact Material - Post	Termination Post Length	Termination Post Length	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Contact Material - Mating	Pitch - Post	Pitch - Post	Housing Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Assmann WSW Components A 24-LC-TT	Open Frame	30 mOhm	Through Hole	1 A	UL94 V-0	Solder	24	85 °C	-55 °C	DIP	0.6 in	15.24 mm	Phosphor Bronze	3.15 mm	0.124 in	Tin	0.1 in	2.54 mm	Phosphor Bronze	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT)
Assmann WSW Components A 24-LC/7-T	Open Frame	30 mOhm	Through Hole	1 A	UL94 V-0	Solder	24	85 °C	-55 °C	DIP	0.3 "	7.62 mm	Phosphor Bronze	3.15 mm	0.124 in	Tin	0.1 in	2.54 mm	Phosphor Bronze	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT)	60 Áin	1.52 Ám	60 µin	1.52 µm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24 (2 x 12) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Tin Through Hole
