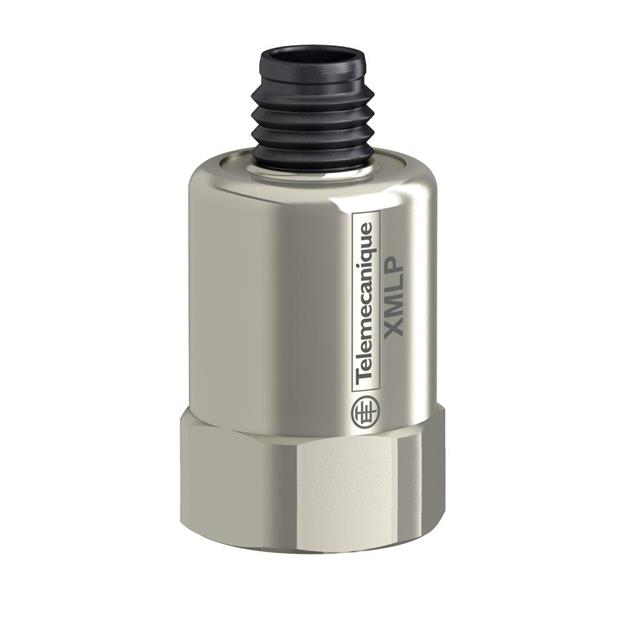

XMLP040BD790
ActiveSCHNEIDER ELECTRIC
ELECTRONIC PRESSURE SENSORS, PRE
XMLP040BD790
ActiveSCHNEIDER ELECTRIC
ELECTRONIC PRESSURE SENSORS, PRE
Description
General part information
XMLP040BD790
ELECTRONIC PRESSURE SENSORS, PRE
Technical Specifications
Parameters and characteristics for this part
| Specification | XMLP040BD790 |
|---|---|
| Accuracy | 0.5 % RH |
| Applications | Industrial Automation |
| Maximum Pressure | 1740.45 PSI |
| Operating Pressure | 580.15 PSI |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Output Type | Analog Voltage |
| Output Voltage (Max) | 10 V |
| Output Voltage (Min) | 0 V |
| Package / Case | Threaded, Cylinder |
| Port Diameter | 0.4375 in |
| Port Gender | Female |
| Port Style | Threaded |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 33 V |
| Voltage - Supply (Minimum) | 12 VDC |
