Specification	XPEBWT-U1-0000-00BZ7

CCT (K)	3000 K
Color	White, Warm
CRI (Color Rendering Index)	90
Current - Max	1.5 A
Current - Test	350 mA
Flux (Maximum)	100 lm
Flux (Minimum)	94 lm
Flux (Typical)	97 lm
Height - Seated (Max)	0.094 in
Lumens/Watt	98 lm/W
Mounting Type	Surface Mount
Package / Case	1414 (3535 Metric)
Package Name	1414
Size / Dimension Length	0.136 in
Size / Dimension Width	0.136 in
Viewing Angle	110 °
Voltage - Forward (Vf) (Typ)	2.84 V

XPEBWT Series

...

Part	Thermal Resistance of Package	Viewing Angle	Lumens/Watt	Mounting Type	Current - Max	Package / Case	CCT (K)	Height - Seated (Max)	Color	Size / Dimension Length	Size / Dimension Width	Voltage - Forward (Vf) (Typ)	CRI (Color Rendering Index) (Typ)	Flux (Minimum)	Flux (Maximum)	Flux (Typical)	Current - Test	Package Name	CRI (Color Rendering Index)

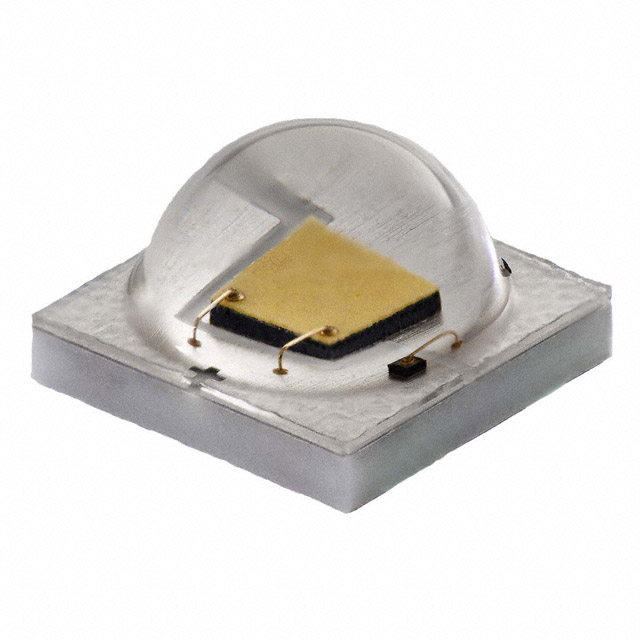

CreeLED, Inc. XPEBWT-01-0000-00EF6	9 °C/W	110 °	116 lm/W	Surface Mount	1 A	1414 (3535 Metric)	3750 K	0.094 in	Warm White	0.136 in	0.136 in	2.9 V	70	114 lm	122 lm	118 lm	350 mA
CreeLED, Inc. XPEBWT-L1-0000-00CF5	9 °C/W	110 °	102 lm/W	Surface Mount	1 A	1414 (3535 Metric)	4250 K	0.094 in	Neutral White	0.136 in	0.136 in	2.9 V	75	100 lm	107 lm	104 lm	350 mA
CreeLED, Inc. XPEBWT-L1-R250-00DF7	9 °C/W	110 °	109 lm/W	Surface Mount	1 A	1414 (3535 Metric)	3250 K	0.094 in	Warm White	0.136 in	0.136 in	2.9 V	80	107 lm	114 lm	111 lm	350 mA
CreeLED, Inc. XPEBWT-L1-0000-00FZ7		110 °	127 lm/W	Surface Mount	1 A	1414 (3535 Metric)	3000 K	0.094 in	Warm White	0.136 in	0.136 in	2.84 V	80	122 lm	130 lm	126 lm	350 mA	1414
CreeLED, Inc. XPEBWT-L1-0000-009AA	9 °C/W	110 °	83 lm/W	Surface Mount	1 A	1414 (3535 Metric)	2700 K	0.094 in	Warm White	0.136 in	0.136 in	2.9 V		81 lm	87 lm	84 lm	350 mA
CreeLED, Inc. XPEBWT-H1-R250-009Z7	9 °C/W	110 °	83 lm/W	Surface Mount	1 A	1414 (3535 Metric)	3000 K	0.094 in	Warm White	0.136 in	0.136 in	2.9 V		81 lm	87 lm	84 lm	350 mA		80
CreeLED, Inc. XPEBWT-L1-0000-00AEA		110 °	92 lm/W	Surface Mount	1 A	1414 (3535 Metric)	2200 K	0.094 in	Warm White	0.136 in	0.136 in	2.84 V	80	87 lm	94 lm	91 lm	350 mA	1414
CreeLED, Inc. XPEBWT-L1-0000-00EE8		110 °	119 lm/W	Surface Mount	1.5 A	1414 (3535 Metric)	2700 K	0.094 in	Warm White	0.136 in	0.136 in	2.84 V	80	114 lm	122 lm	118 lm	350 mA	1414
CreeLED, Inc. XPEBWT-L1-0000-00FE1	9 °C/W	110 °	124 lm/W	Surface Mount	1 A	1414 (3535 Metric)	6500 K	0.094 in	Cool White	0.136 in	0.136 in	2.9 V	70	122 lm	130 lm	126 lm	350 mA
CreeLED, Inc. XPEBWT-L1-0000-008EA		110 °	77 lm/W	Surface Mount	1 A	1414 (3535 Metric)	2200 K	0.094 in	Warm White	0.136 in	0.136 in	2.9 V	80	74 lm	81 lm	78 lm	350 mA
