Description
General part information
PRT-10255

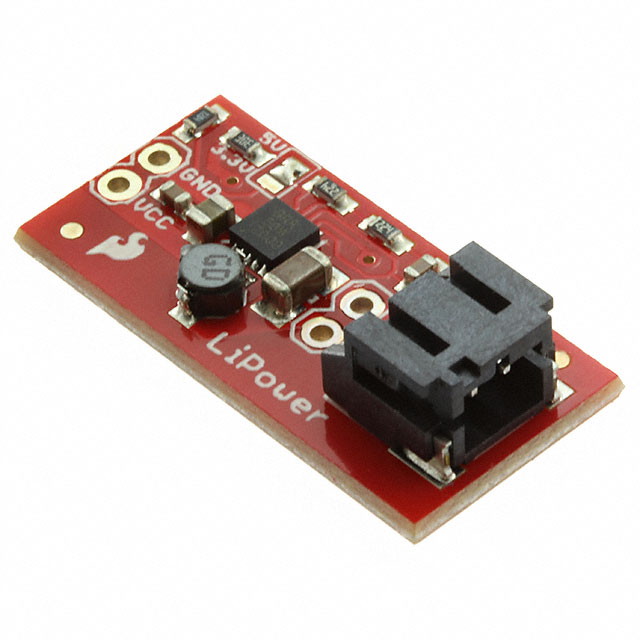

TPS61200 - DC/DC, Step Up or Down 1, Non-Isolated Outputs Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | PRT-10255 |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 600 mA |
| Main Purpose | Step Up or Down, DC/DC |
| Non-Isolated Output Count | 1 count |
| Output Type | Non-Isolated |
| Regulator Topology | Boost |
| Supplied Contents | Board(s) |
| Total Output Count | 1 |
| Utilized IC / Part | TPS61200 |
| Voltage - Input (Maximum) | 5.5 V |
| Voltage - Input (Minimum) | 0.3 V |
| Voltage - Output | 3.3 V, 5 VDC |
| Voltage - Output | 3.3V, 5V |
| Voltage - Output (Option 1) | 3.3 V |
| Voltage - Output (Option 2) | 5 V |
