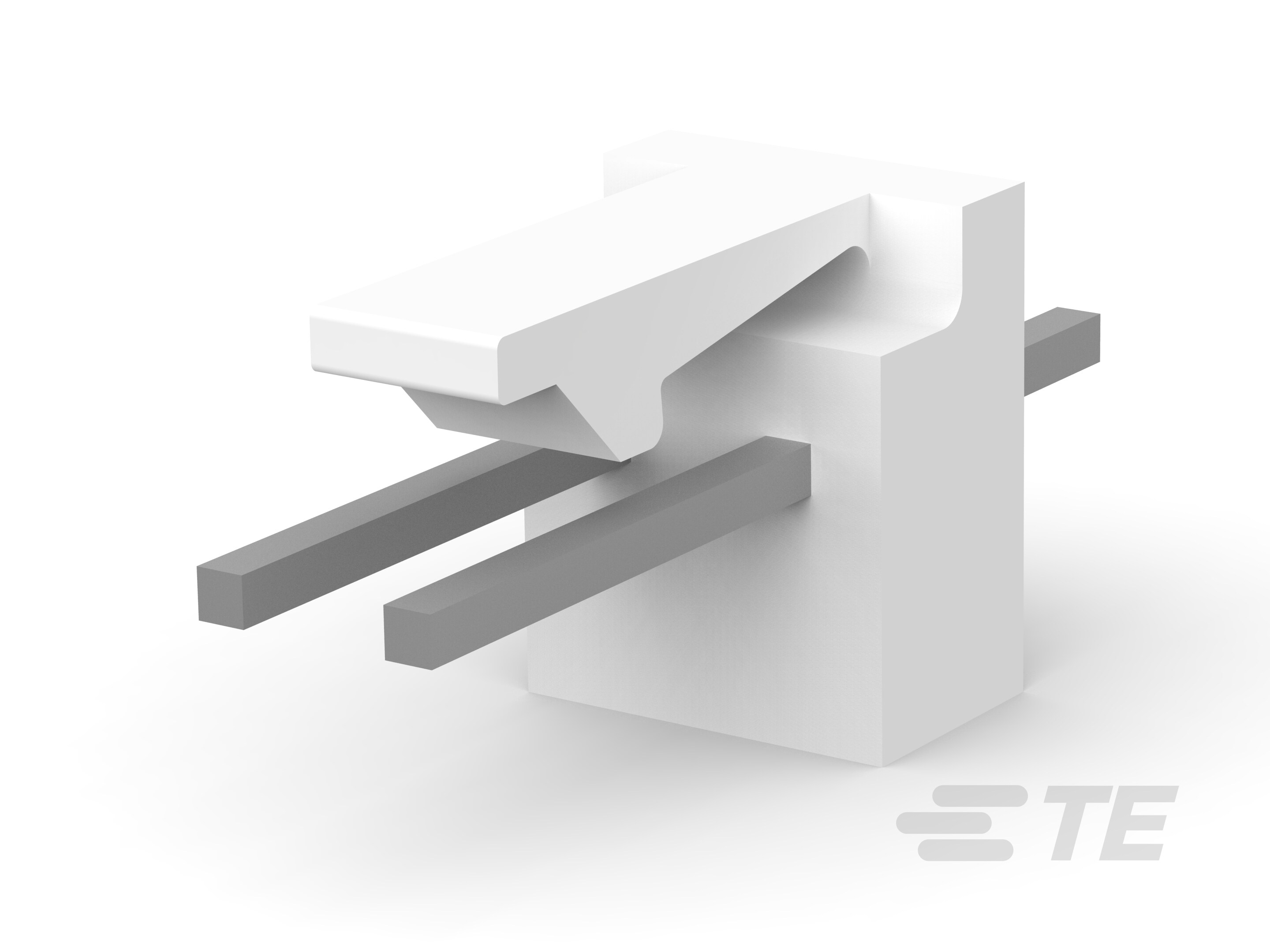

Specification	647658-2

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Mating	0.29 in
Contact Length - Post	0.135 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating	0 A
Current Rating	Varies by Wire Gauge
Fastening Type	Friction Lock
Insulation Color	Natural
Insulation Height	0.347 in
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Overall Contact Length	0.55 in
Pitch - Mating	0.1 in
Shrouding	Shrouded - 1 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	250 V
