CONMHF1-SMD-G-T
ActiveTE Connectivity AMP Connectors

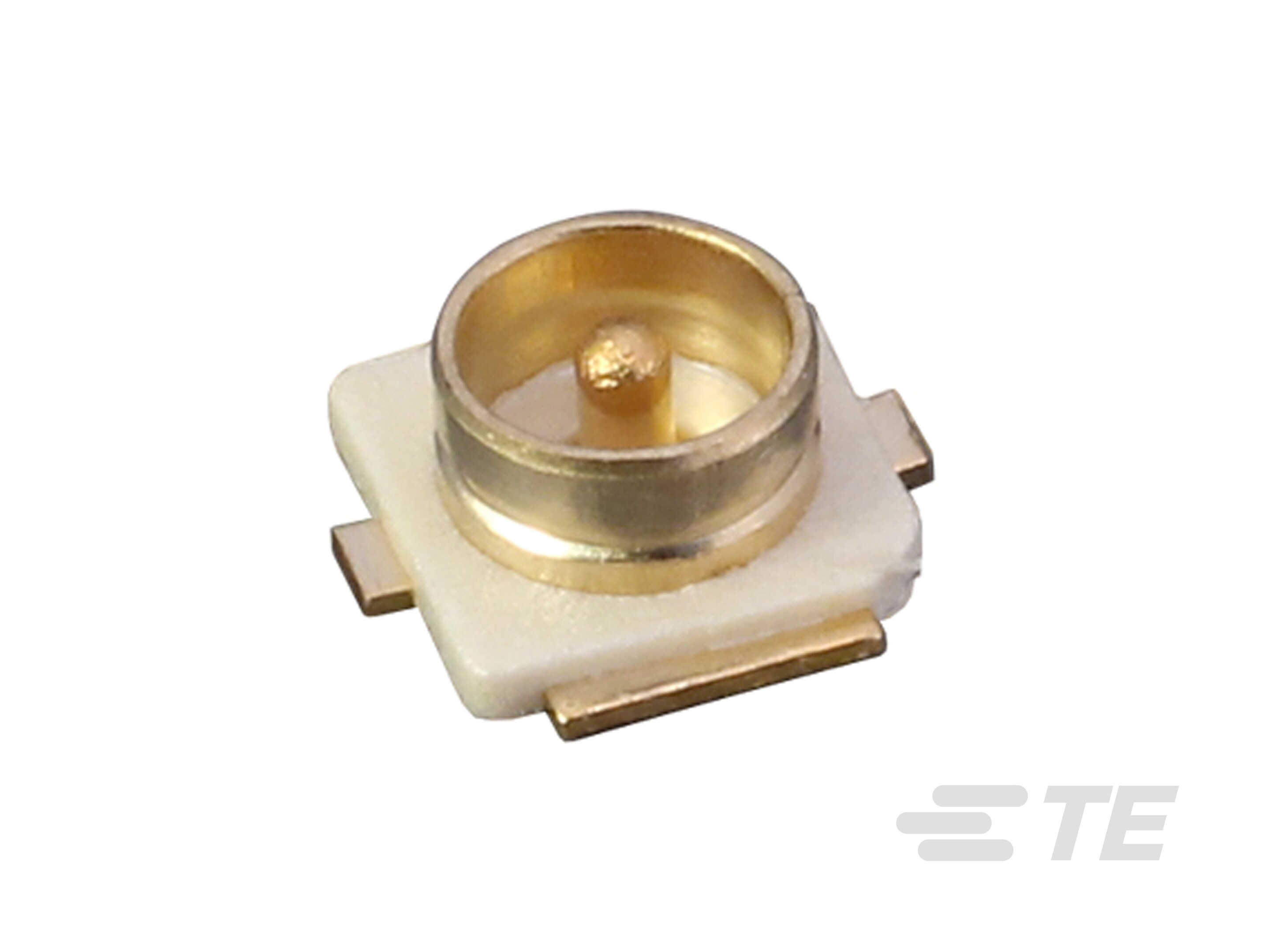

U.FL/MHF1 JACK 50 OHM PCB SURFACE MOUNT
CONMHF1-SMD-G-T
ActiveTE Connectivity AMP Connectors
U.FL/MHF1 JACK 50 OHM PCB SURFACE MOUNT
Description
General part information
CONMHF1-SMD-G-T
UMCC GEN 1 Connector, Jack, 50 ohm, Snap-On, 6 GHz, Cable-to-Board, 1 Position, Printed Circuit Board, Board Mount, Copper Alloy, Gold
Technical Specifications
Parameters and characteristics for this part
| Specification | CONMHF1-SMD-G-T |
|---|---|
| Center Contact Material | Copper Alloy |
| Connector Style | U.FL (UMCC) |
| Connector Type | Jack, Male Pin |
| Contact Termination | Solder |
| Fastening Type | Snap-On |
| Frequency - Max | 6000 MHz |
| Housing Color | White |
| Impedance | 50 Ohm |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Shield Termination | Solder |
