Description

General part information

TC-500-4310M-LP-LC

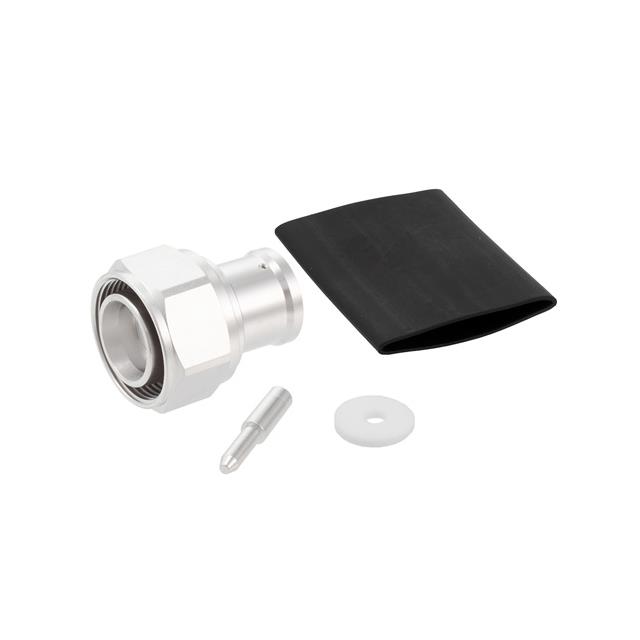

4.3/10 Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder

Technical Specifications

Parameters and characteristics for this part

SpecificationTC-500-4310M-LP-LC
Body FinishTri-Metal
Body MaterialBrass
Cable GroupSPO-500, SPF-500, SPP-500LLPL
Center Contact MaterialBrass
Center Contact PlatingSilver
Connector Style4.3/10
Connector TypeMale Pin, Plug
Contact TerminationSolder
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Fastening TypeThreaded
Frequency - Max6000 MHz
Housing ColorSilver
Impedance50 Ohm
Insertion Loss0.25 dB
Mounting TypeFree Hanging (In-Line)
Number of Ports1
Operating Temperature (Max)125 °C
Operating Temperature (Min)-40 °C
Shield TerminationSolder
Voltage Rating2.5 kV
