Description
General part information
ASMGA015XD113S11

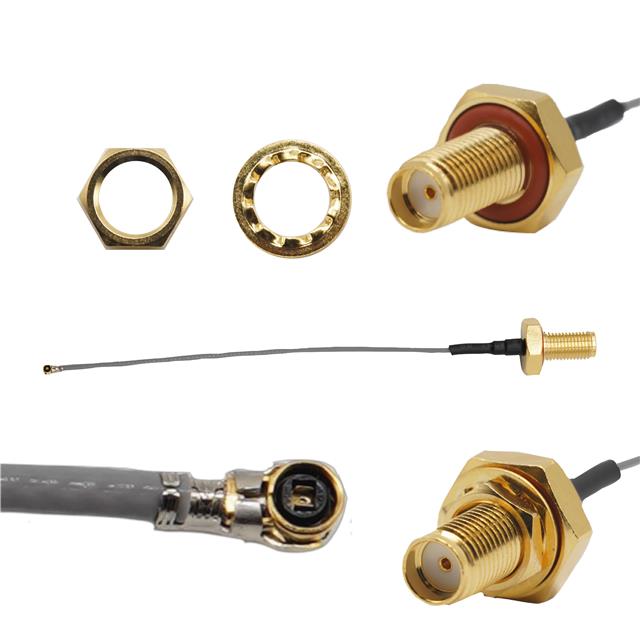

Cable Assembly Coaxial SMA to I-PEX MHF4 1.13mm OD Coaxial Cable 5.906" (150.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | ASMGA015XD113S11 |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | Right Angle, I-PEX MHF4 Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Outer Diameter | 1.13 mm |
| Cable Type | Coaxial Cable, OD Coaxial Cable, 1.13mm OD Coaxial Cable |
| Cable Type Size | 1.13 |
| Color | Gray |
| Frequency - Max | 6000 MHz |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Length | 5.906 in |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA to I-PEX MHF4 |
