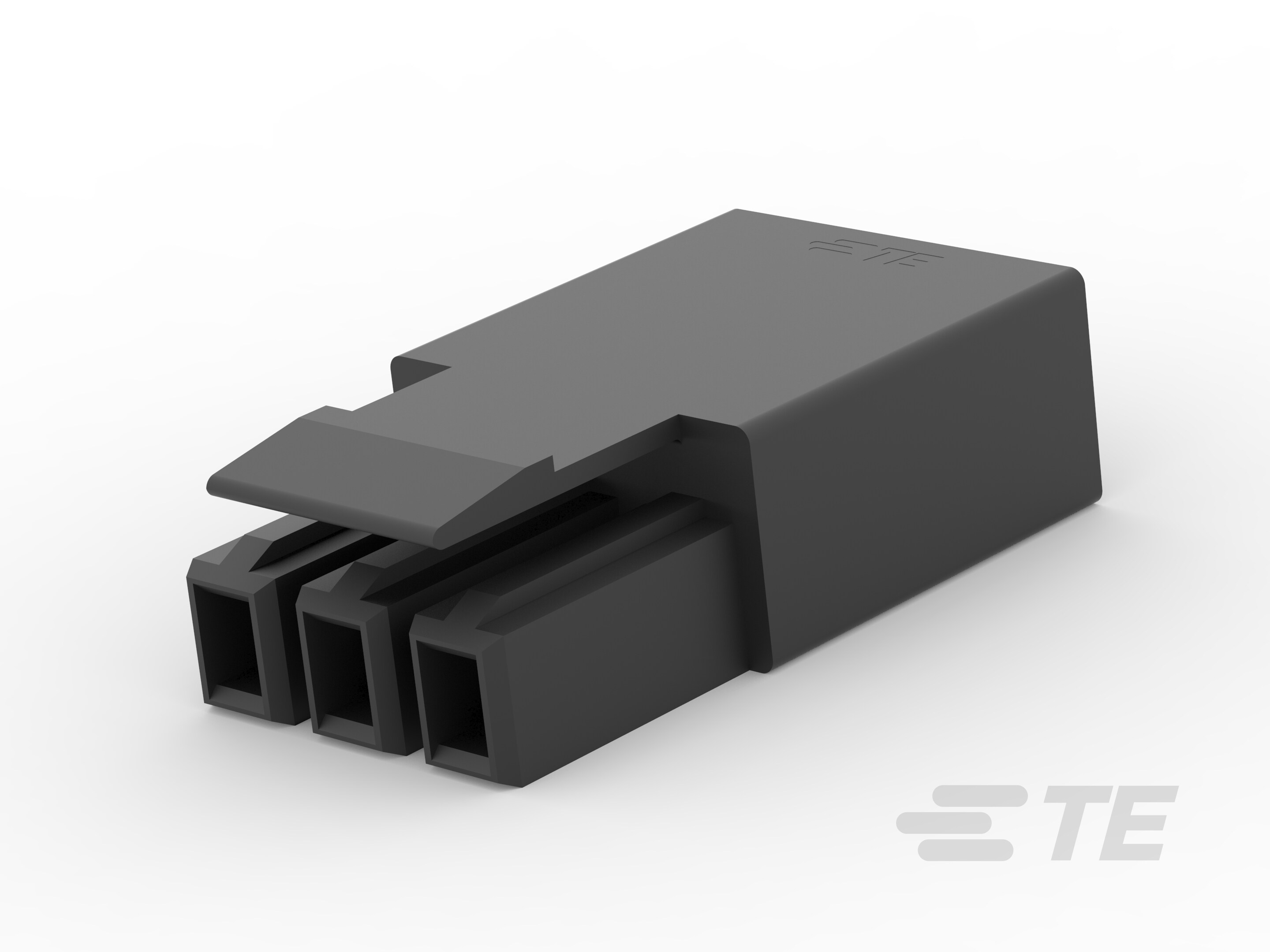

Specification	2834054-2

Connector Type	Plug
Contact Finish	Tin
Contact Material	Copper Alloy
Fastening Type	Latch Lock
Housing Color	Black
Housing Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	3
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Style	Cable/Wire
Termination	Poke-In
Wire Gauge (AWG) (Max)	22 AWG
Wire Gauge (AWG) (Min)	16 AWG

LIGHT-N-LOK Ballast Connector Series

Part	Mounting Type	Number of Positions	Style	Fastening Type	Connector Type	Operating Temperature (Min)	Operating Temperature (Max)	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Termination	Housing Material	Contact Material	Contact Finish	Housing Color	Current Rating Options	Mating Cycles	Voltage Rating
TE Connectivity AMP Connectors 2834049-3
TE Connectivity AMP Connectors 1-2834055-4	Free Hanging (In-Line)	3	Cable/Wire	Latch Holder	Receptacle	-40 °C	105 °C	16 AWG	22 AWG	Poke-In	Thermoplastic	Copper Alloy	Tin	Red
TE Connectivity AMP Connectors 2271183-1	Free Hanging (In-Line)	2	Cable/Wire	Detent Lock	Receptacle	-40 °C	105 °C	18 AWG	22 AWG	Poke-In	Nylon PA Polyamide	Copper Alloy	Tin	Orange
TE Connectivity AMP Connectors 2834048-3
TE Connectivity AMP Connectors 1-2834055-2	Free Hanging (In-Line)	3	Cable/Wire	Latch Holder	Receptacle	-40 °C	105 °C	16 AWG	22 AWG	Poke-In	Thermoplastic	Copper Alloy	Tin	Black
TE Connectivity AMP Connectors 2271180-3
TE Connectivity AMP Connectors 2834055-2	Free Hanging (In-Line)	3	Cable/Wire	Latch Holder	Receptacle	-40 °C	105 °C	16 AWG	22 AWG	Poke-In	Thermoplastic	Copper Alloy	Tin	Black	3A 8A	10 cycles	600 V
TE Connectivity AMP Connectors 2271203-1	Free Hanging (In-Line)	2	Cable/Wire		Splice	-40 °C	105 °C	18 AWG	22 AWG	Poke-In	Nylon PA Polyamide	Copper Alloy	Tin	Orange
TE Connectivity AMP Connectors 2834048-1	Free Hanging (In-Line)	2	Cable/Wire	Latch Lock	Plug	-40 °C	125 °C	16 AWG	22 AWG	Poke-In	Thermoplastic	Copper Alloy	Tin	Natural	3A 8A	10 cycles	600 V
TE Connectivity AMP Connectors 2834049-3	Free Hanging (In-Line)	2	Cable/Wire	Latch Holder	Receptacle	-40 °C	125 °C	16 AWG	22 AWG	Poke-In	Thermoplastic	Copper Alloy	Tin	Orange	3A 8A	10 cycles	600 V
