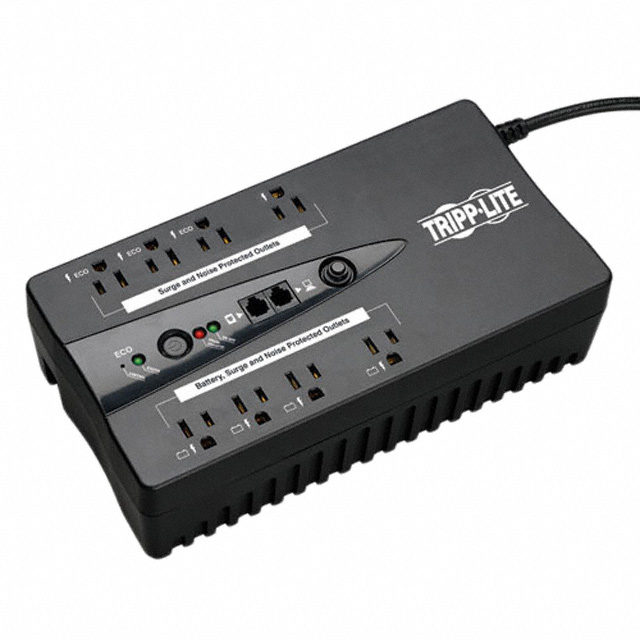

ECO550UPS
ActiveEaton Tripp Lite
UPS ECO GREEN BATTERY BACK UP
ECO550UPS
ActiveEaton Tripp Lite
UPS ECO GREEN BATTERY BACK UP
Description
General part information
ECO550UPS
UPS ECO GREEN BATTERY BACK UP
Technical Specifications
Parameters and characteristics for this part
| Specification | ECO550UPS |
|---|---|
| AC Outlet Types | Surge Only, UPS |
| AC Outlets (Count) | 8 count |
| AC Outlets (Surge Only) | 4 count |
| AC Outlets (UPS) | 4 count |
| Applications | Home Theater, Desktop |
| Cord Length | 6 ft |
| Form | Desktop |
| Height | 3.1 in |
| Input Connector | NEMA 5-15P |
| Media Lines Protected | RJ11 |
| Output Connector | NEMA 5-15R |
| Output Connector Quantity (NEMA 5-15R) | 8 |
| Power - Rated (VA) | 550 VA |
| Power - Rated (W) | 300 W |
| Size / Dimension Length | 5.7 in |
| Size / Dimension Width | 10.8 in |
| Type | Standby (No Regulation) |
| Voltage - Output | 120 V |
| Weight | 6.6 lbs |
