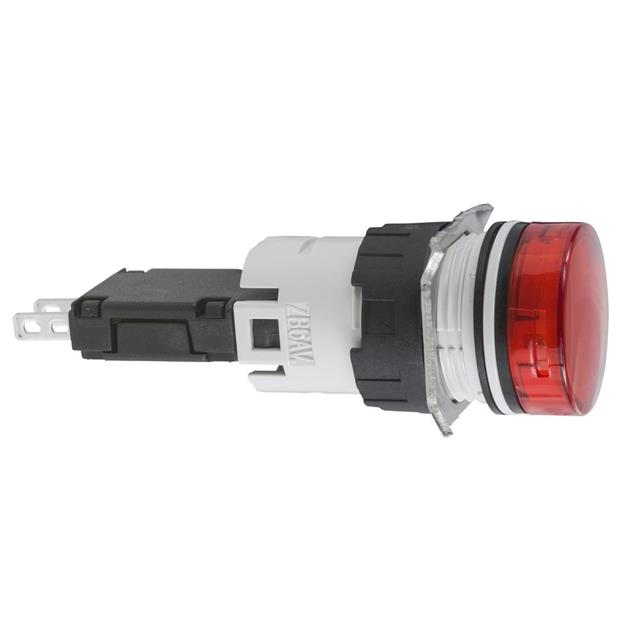

XB6AV4BB
ActiveSCHNEIDER ELECTRIC
COMPLETE PILOT LIGHT, HARMONY XB
XB6AV4BB
ActiveSCHNEIDER ELECTRIC
COMPLETE PILOT LIGHT, HARMONY XB
Description
General part information
XB6AV4BB
LED Panel Indicator 12V ~ 24V 15mA Quick Connect - 0.110" (2.8mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | XB6AV4BB |
|---|---|
| Current | 15 mA |
| Ingress Protection | 13, IP65, 4, NEMA 4X |
| Lens Color | Red |
| Lens Diameter | 18 mm |
| Lens Style | Round, Convex Top |
| Panel Cutout Dimension | 0.63 " |
| Panel Cutout Shape | Round |
| Quick Connect Size (0.110") | 0.11 in |
| Ratings | AC, DC |
| Termination Style | Quick Connect |
| Type | LED |
| Voltage (Max) | 24 V |
| Voltage (Min) | 12 V |
