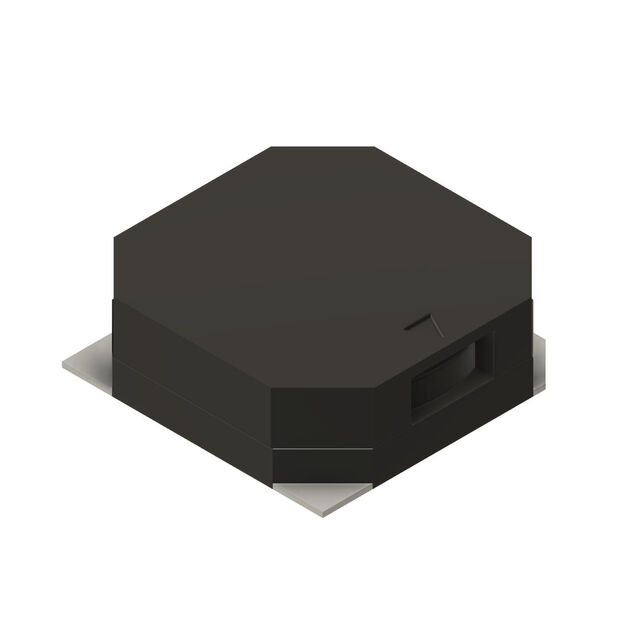

SMT-0823-S-HT
ActivePUI Audio, Inc.
BUZZER MAGN 3.6V 7.5X7.5 SMD
SMT-0823-S-HT
ActivePUI Audio, Inc.
BUZZER MAGN 3.6V 7.5X7.5 SMD
Description
General part information
SMT-0823-S-HT
Buzzers Transducer, Externally Driven Magnetic 3.6 V 100mA 2.5kHz 80dB Surface Mount Solder Pads
Technical Specifications
Parameters and characteristics for this part
| Specification | SMT-0823-S-HT |
|---|---|
| Current - Supply | 100 mA |
| Driver Circuitry | Externally Driven, Transducer |
| Frequency | 2.5 kHz |
| Height - Seated (Max) | 0.098 in |
| Input Type | Peak-Peak Signal |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Port Location | Top |
| Size / Dimension Length | 0.295 in |
| Size / Dimension Width | 0.295 in |
| Sound Pressure Level (SPL) | 80 dB |
| Technology | Magnetic |
| Termination | Solder Pads |
| Voltage - Rated | 3.6 VDC |
| Voltage Range (Max) | 4.5 V |
| Voltage Range (Min) | 2.4 V |
