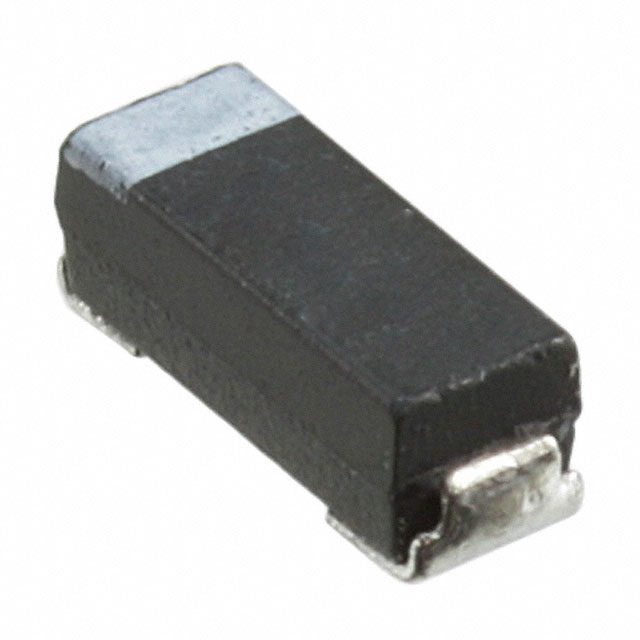

CWR29JB225JCBC
ActiveKYOCERA AVX
CWR09/CWR11/CWR29 ROHS COMPLIANT: YES
CWR29JB225JCBC
ActiveKYOCERA AVX
CWR09/CWR11/CWR29 ROHS COMPLIANT: YES
Description
General part information
CWR29JB225JCBC
2.2 µF Molded Tantalum Capacitors 20 V 1505 (3813 Metric) 3.6Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | CWR29JB225JCBC |
|---|---|
| Capacitance | 2.2 µF |
| ESR (Equivalent Series Resistance) | 3.6 Ohm |
| Failure Rate (Percent) | 0.01 % |
| Failure Rate Rating | C |
| Features | High Reliability |
| Grade | Military |
| Height - Seated (Max) | 0.065 in |
| Manufacturer Size Code | B |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1505 (3813 Metric) |
| Qualification | 11, MIL-PRF-55365 |
| Size / Dimension Length | 0.15 in |
| Size / Dimension Width | 0.05 in |
| Tolerance | 5 % |
| Type | Molded |
| Voltage - Rated | 20 V |
