7032-9894
ActiveMcGill Microwave Systems
THREADED SMPM FEMALE R/A TO SMA
7032-9894
ActiveMcGill Microwave Systems
THREADED SMPM FEMALE R/A TO SMA
Description
General part information
7032-9894

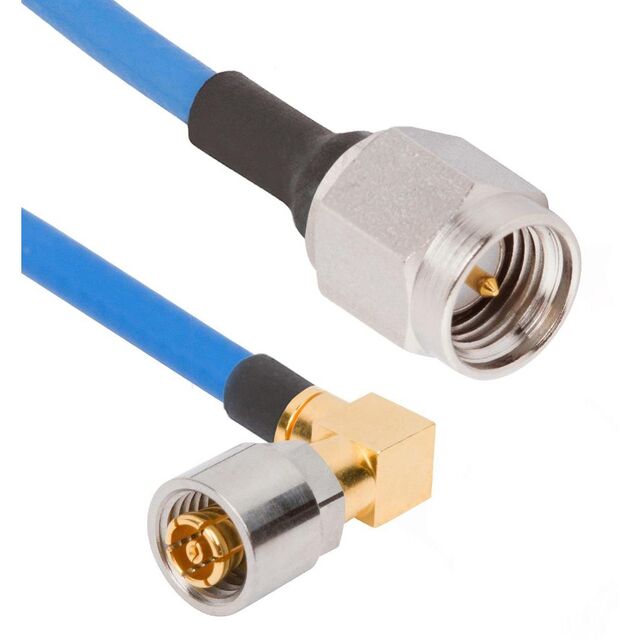

Cable Assembly Coaxial SMA to SMPM 0.085" Flexible Cable 12.00" (304.80mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 7032-9894 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | Right Angle, SMPM Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Diameter | 0.085 " |
| Cable Outer Diameter | 0.085 " |
| Cable Type | Flexible Cable |
| Cable Type Size | 0.085 |
| Color | Blue |
| Frequency - Max | 18 GHz |
| Length | 12 in |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA, SMPM |
