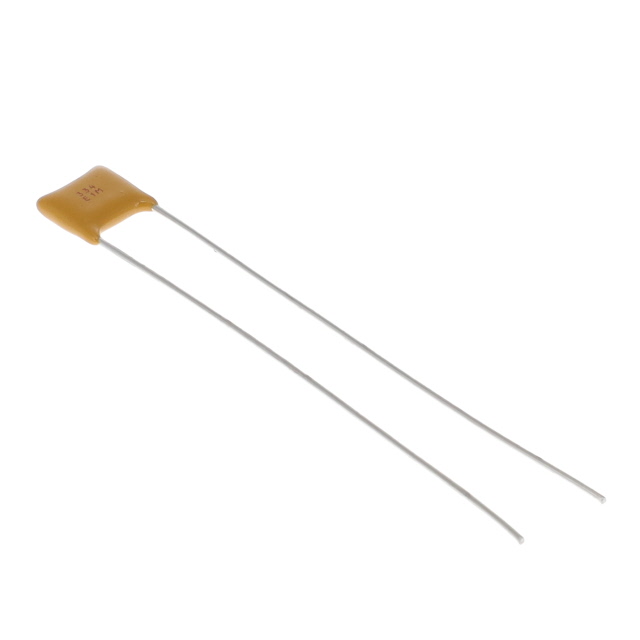

SR301E334MAA
ActiveKYOCERA AVX
CAP CER RADIAL
SR301E334MAA
ActiveKYOCERA AVX
CAP CER RADIAL
Description
General part information
SR301E334MAA
0.33 µF ±20% 100V Ceramic Capacitor Z5U Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | SR301E334MAA |
|---|---|
| Applications | General Purpose |
| Capacitance | 0.33 µF |
| Height - Seated (Max) | 0.36 in |
| Lead Spacing | 0.2 in |
| Lead Style | Straight |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | 10 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.3 in |
| Size / Dimension Width | 0.15 in |
| Temperature Coefficient | Z5U |
| Tolerance | 20 % |
| Voltage - Rated | 100 VAC/DC |
