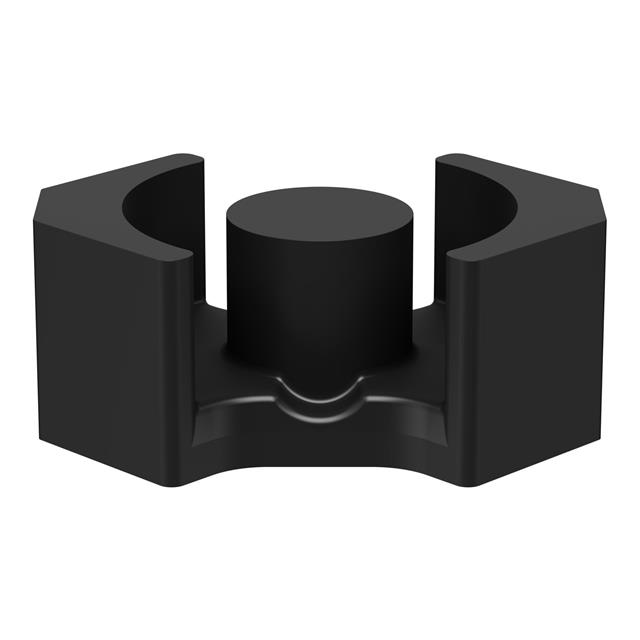

Specification	B65813J0400J087

Core Factor (ΣI/A) mm⁻¹	0.45 mm⁻¹
Core Type	RM
Effective Area (Ae)	98 mm²
Effective Length (le)	44 mm
Effective Magnetic Volume (Ve)	4310 mm³
Finish	Uncoated
Gap	Gapped
Height	0.368 in
Initial Permeability (µi)	2200
Length	1.122 in
Material	N87
Minimum Core Cross Section (Amin) (mm²)	90 mm²
Package Name	RM 10
Width	0.531 in
