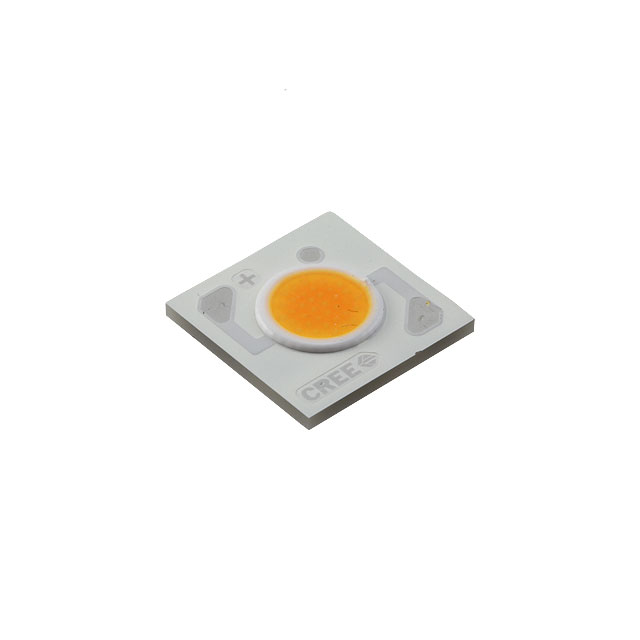

Specification	CXA1310-0000-000F00J235H

CCT (K)	3500 K
CCT Description	2-Step MacAdam Ellipse
Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	80
Current - Max	1.05 A
Current - Test	700 mA
Height	1.55 mm
Lens Type	Flat
Light Emitting Surface (LES) Diameter	6 mm
Lumens/Watt	86 lm/W
Luminous Flux	1080 lm
Luminous Flux (Maximum)	1120 lm
Luminous Flux (Minimum)	1040 lm
Size / Dimension Length	13.35 mm
Size / Dimension Width	13.35 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	18 V

CXA1310 Series

...

Part	Lens Type	Height	Luminous Flux (Minimum)	Luminous Flux	Luminous Flux (Maximum)	CCT (K)	CCT Description	Type	Viewing Angle	Color	Size / Dimension Length	Size / Dimension Width	Light Emitting Surface (LES) Diameter	Voltage - Forward (Vf) (Typ)	Configuration	Current - Max	CRI (Color Rendering Index)	Temperature - Test	Current - Test	Lumens/Watt
CreeLED, Inc. CXA1310-0000-000F0HK250H	Flat	1.55 mm	1200 lm	1245 lm	1290 lm	5000 K	2-Step MacAdam Ellipse	Chip On Board (COB)	115 °	Cool White	13.35 mm	13.35 mm	6 mm	18 V	Square	1.05 A	80	85 °C	700 mA	99 lm/W
CreeLED, Inc. CXA1310-0000-000N0YG427H	Flat	1.55 mm	840 lm	870 lm	900 lm	2700 K	2-Step MacAdam Ellipse	Chip On Board (COB)	115 °	Warm White	13.35 mm	13.35 mm	6 mm	36 V	Square	525 mA	93	85 °C	350 mA	69 lm/W
CreeLED, Inc. CXA1310-0000-000F00K265F	Flat	1.55 mm	1200 lm	1245 lm	1290 lm	6500 K	4-Step MacAdam Ellipse	Chip On Board (COB)	115 °	Cool White	13.35 mm	13.35 mm	6 mm	18 V	Square	1.05 A	70	85 °C	700 mA	99 lm/W
CreeLED, Inc. CXA1310-0000-000N0UH450F	Flat	1.55 mm	970 lm	1005 lm	1040 lm	5000 K	4-Step MacAdam Ellipse	Chip On Board (COB)	115 °	Cool White	13.35 mm	13.35 mm	6 mm	36 V	Square	525 mA	90	85 °C	350 mA	80 lm/W
CreeLED, Inc. CXA1310-0000-000F00J227G	Flat	1.55 mm	1040 lm	1080 lm	1120 lm	2700 K	3-Step MacAdam Ellipse	Chip On Board (COB)	115 °	Warm White	13.35 mm	13.35 mm	6 mm	18 V	Square	1.05 A	80	85 °C	700 mA	86 lm/W
CreeLED, Inc. CXA1310-0000-000N00J235H	Flat	1.55 mm	1040 lm	1080 lm	1120 lm	3500 K	2-Step MacAdam Ellipse	Chip On Board (COB)	115 °	Warm White	13.35 mm	13.35 mm	6 mm	36 V	Square	525 mA	80	85 °C	350 mA	86 lm/W
CreeLED, Inc. CXA1310-0000-000F0UH440H	Flat	1.55 mm	970 lm	1005 lm	1040 lm	4000 K	2-Step MacAdam Ellipse	Chip On Board (COB)	115 °	Neutral White	13.35 mm	13.35 mm	6 mm	18 V	Square	1.05 A	90	85 °C	700 mA	80 lm/W
CreeLED, Inc. CXA1310-0000-000F0YG227H	Flat	1.55 mm	780 lm	810 lm	840 lm	2700 K	2-Step MacAdam Ellipse	Chip On Board (COB)	115 °	Warm White	13.35 mm	13.35 mm	6 mm	18 V	Square	1.05 A	93	85 °C	700 mA	64 lm/W
CreeLED, Inc. CXA1310-0000-000N0YG235G	Flat	1.55 mm	780 lm	810 lm	840 lm	3500 K	3-Step MacAdam Ellipse	Chip On Board (COB)	115 °	Warm White	13.35 mm	13.35 mm	6 mm	36 V	Square	525 mA	93	85 °C	350 mA	64 lm/W
CreeLED, Inc. CXA1310-0000-000F00J230F	Flat	1.55 mm	1040 lm	1080 lm	1120 lm	3000 K	4-Step MacAdam Ellipse	Chip On Board (COB)	115 °	Warm White	13.35 mm	13.35 mm	6 mm	18 V	Square	1.05 A	80	85 °C	700 mA	86 lm/W
