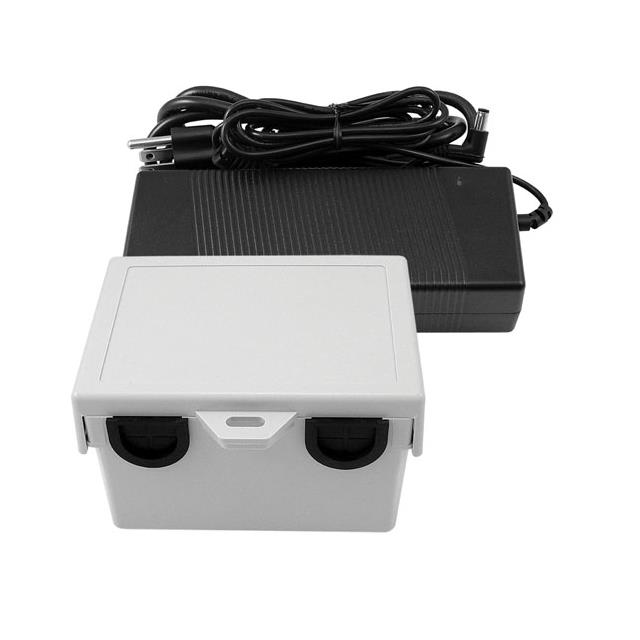

BT-CAT6-P1-HPW56118
ActivePasternack
INJBT-CAT6-P1-HPW W/ 56VDC
BT-CAT6-P1-HPW56118
ActivePasternack
INJBT-CAT6-P1-HPW W/ 56VDC
Description
General part information
BT-CAT6-P1-HPW56118
56V Power Over Ethernet (POE) 1 Port Midspan Injector 10/100/1000 Mbps Data Rate
Technical Specifications
Parameters and characteristics for this part
| Specification | BT-CAT6-P1-HPW56118 |
|---|---|
| Compliance | IEEE802.3af |
| Current - Output | 2.107 A |
| Input Connector | RJ45 (Data), NEMA 1-15P (Power) |
| Maximum Data Rate | 1000 Mbps |
| Minimum Data Rate | 10 Mbps |
| Mounting Type | Chassis Mount |
| Number of Ports | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Output Connector | Power), RJ45 (Data |
| Power (Watts) - Per Port | 118 W |
| Size / Dimension Height | 2.81 in |
| Size / Dimension Length | 4.75 in |
| Size / Dimension Width | 4.06 in |
| Type | Midspan Injector |
| Typical Data Rate | 100 Mbps |
| Voltage - Output | 56 V |
