Description
General part information

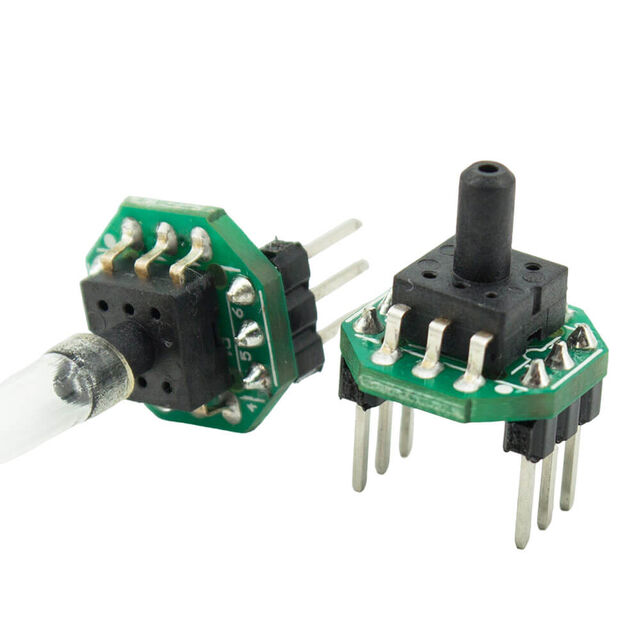

XGZP6847A100KPGPN
Pressure Sensor ±14.5PSI (±100kPa) Gauge Male - 0.12" (3mm) Tube 0.5 V ~ 4.5 V 6-DIP
Technical Specifications
Parameters and characteristics for this part
| Specification | XGZP6847A100KPGPN |
|---|---|
| Accuracy | 2 % |
| Applications | Board Mount |
| Features | Temperature Compensated, Amplified Output |
| Maximum Pressure | 29.01 PSI |
| Mounting Type | Through Hole |
| Operating Pressure | 14.5 PSI |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -20 °C |
| Output Type | Analog |
| Output Voltage (Max) | 4.5 V |
| Output Voltage (Min) | 0.5 V |
| Package / Case | 6-DIP |
| Package Name | 6-DIP |
| Port Diameter | 0.12 in |
| Port Feature | Tube |
| Port Gender | Male |
| Port Style | Barbless |
| Pressure Type | Gauge |
| Voltage - Supply | 5 VDC |
