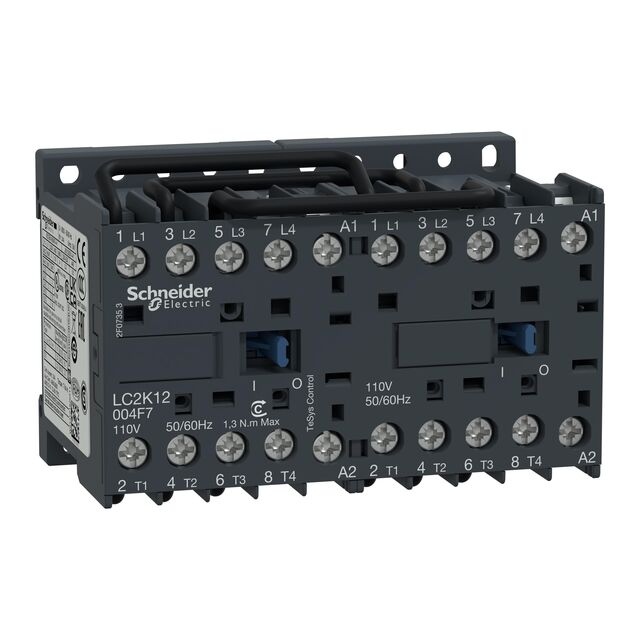

LC2K12004F7
ObsoleteSCHNEIDER ELECTRIC
REVERSING CONTACTOR 575VAC 12A IEC ROHS COMPLIANT: YES
LC2K12004F7
ObsoleteSCHNEIDER ELECTRIC
REVERSING CONTACTOR 575VAC 12A IEC ROHS COMPLIANT: YES
Description
General part information
LC2K12004F7
REVERSING CONTACTOR 575VAC 12A IEC ROHS COMPLIANT: YES
Technical Specifications
Parameters and characteristics for this part
| Specification | LC2K12004F7 |
|---|---|
| Coil Voltage | 110 V |
| Contact Form | 4 Form A, PST-NO |
| Contact Rating (Current) | 20 A |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 88 V |
| Must Release Voltage | 22 VDC |
| Operate Time | 20 ms |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -25 °C |
| Pin Count | 4 |
| Release Time | 20 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Termination Style | Screw Terminal |
