1-1337582-1
ActiveTE Connectivity AMP Connectors

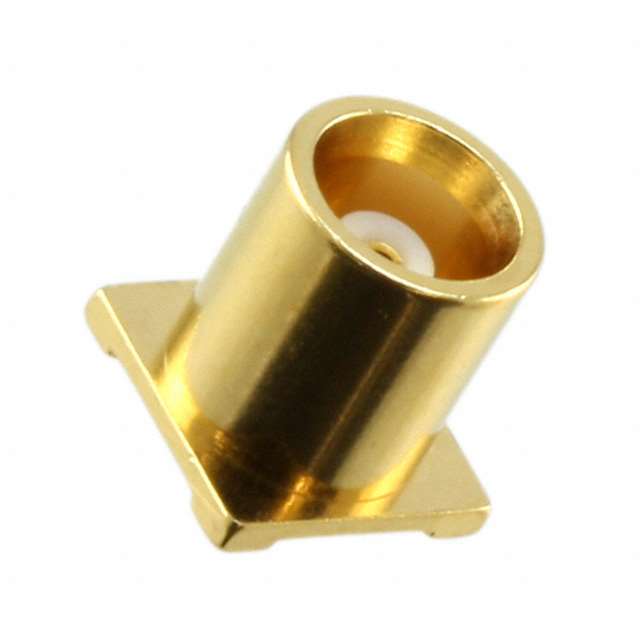

CONN MCX JACK STR 50 OHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-1337582-1
ActiveTE Connectivity AMP Connectors
CONN MCX JACK STR 50 OHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-1337582-1 | 1337582 Series |
|---|---|---|
| Body Finish | Gold | Gold |
| Body Material | Brass | Brass |
| Center Contact Material | Phosphor Bronze | Phosphor Bronze |
| Center Contact Plating | Gold | Gold |
| Connector Style | MCX | MCX |
| Connector Type | Female Socket, Jack | Female Socket, Jack |
| Contact Termination | Solder | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On | Snap-On |
| Frequency - Max [Max] | 6000 MHz | 6000 MHz |
| Housing Color | Gold | Gold |
| Impedance | 50 Ohms | 50 Ohms |
| Insertion Loss | 0.1 dB | 0.1 dB |
| Mating Cycles | 500 | 500 |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Ports | 1 | 1 |
| Operating Temperature [Max] | 165 °C | 165 °C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Shield Termination | Solder | Solder |
| Voltage Rating | 335 V | 335 V |
1337582 Series
CONN MCX JACK STR 50 OHM SMD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Housing Color | Connector Style | Fastening Type | Body Finish | Shield Termination | Voltage Rating | Mating Cycles | Number of Ports | Insertion Loss | Mounting Type | Body Material | Connector Type | Impedance | Center Contact Plating | Center Contact Material | Dielectric Material | Contact Termination | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-1337582-0 | -65 ░C | 165 °C | Gold | MCX | Snap-On | Gold | Solder | 335 V | 500 | 1 | 0.1 dB | Surface Mount | Brass | Female Socket, Jack | 50 Ohms | Gold | Phosphor Bronze | Polytetrafluoroethylene (PTFE) | Solder | 6000 MHz |
TE Connectivity AMP Connectors 1-1337582-1 | -65 ░C | 165 °C | Gold | MCX | Snap-On | Gold | Solder | 335 V | 500 | 1 | 0.1 dB | Surface Mount | Brass | Female Socket, Jack | 50 Ohms | Gold | Phosphor Bronze | Polytetrafluoroethylene (PTFE) | Solder | 6000 MHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1337582 Series
MCX Connector Jack, Female Socket 50 Ohms Surface Mount Solder
