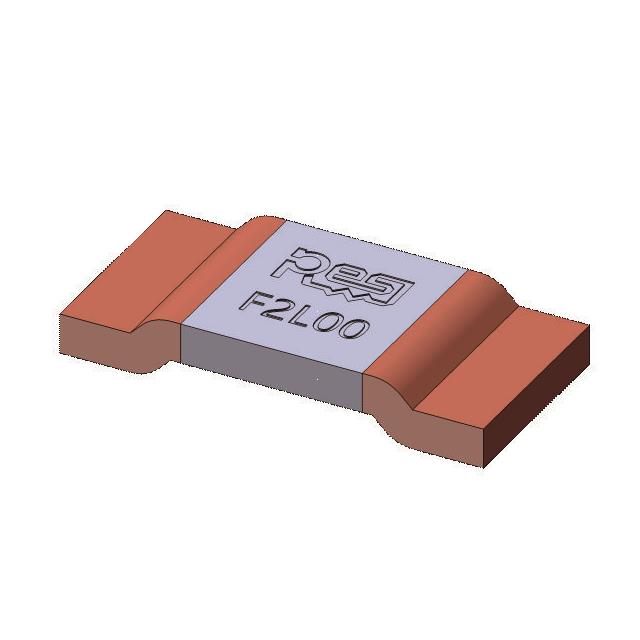

PEWF2512D4L00Q9
ActiveC&B Eureka Innovations
0.004 OHMS 0.5% 3W 50PPM/C
PEWF2512D4L00Q9
ActiveC&B Eureka Innovations
0.004 OHMS 0.5% 3W 50PPM/C
Description
General part information
PEWF2512D4L00Q9
Chip Resistor
Technical Specifications
Parameters and characteristics for this part
| Specification | PEWF2512D4L00Q9 |
|---|---|
| Composition | Metal Element |
| Features | Current Sense |
| Height - Seated (Max) | 0.051 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 170 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2512 (6332 Metric) |
| Package Name | 2512 |
| Power (Watts) | 3 W |
| Resistance | 4 mOhms |
| Size / Dimension Length | 0.248 in |
| Size / Dimension Width | 0.118 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 0.5 % |
