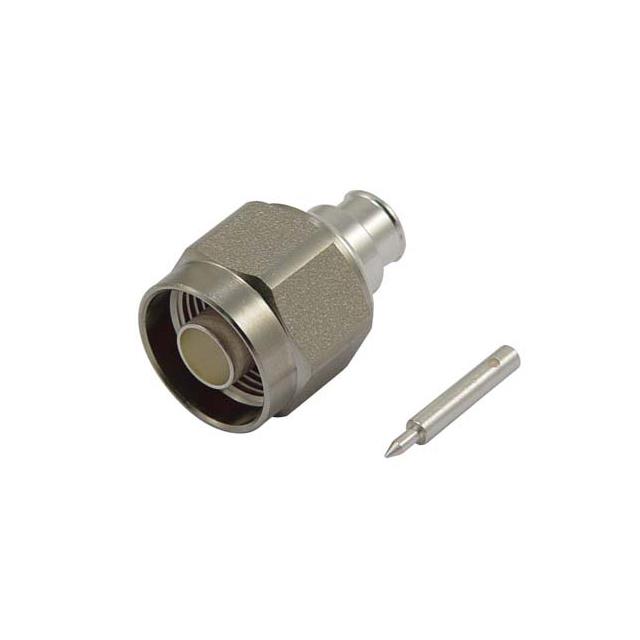

ANM-1P100
ActivePasternack
CONPIM N-MALE RG401
ANM-1P100
ActivePasternack
CONPIM N-MALE RG401
Description
General part information
ANM-1P100
N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | ANM-1P100 |
|---|---|
| Body Finish | Tri-Metal |
| Body Material | Brass |
| Cable Group | RG-401 |
| Center Contact Material | Brass |
| Center Contact Plating | Silver |
| Connector Style | N Type |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 2.7 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mating Cycles | 500 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Solder |
