4-2392850-1
ActiveTE Connectivity AMP Connectors

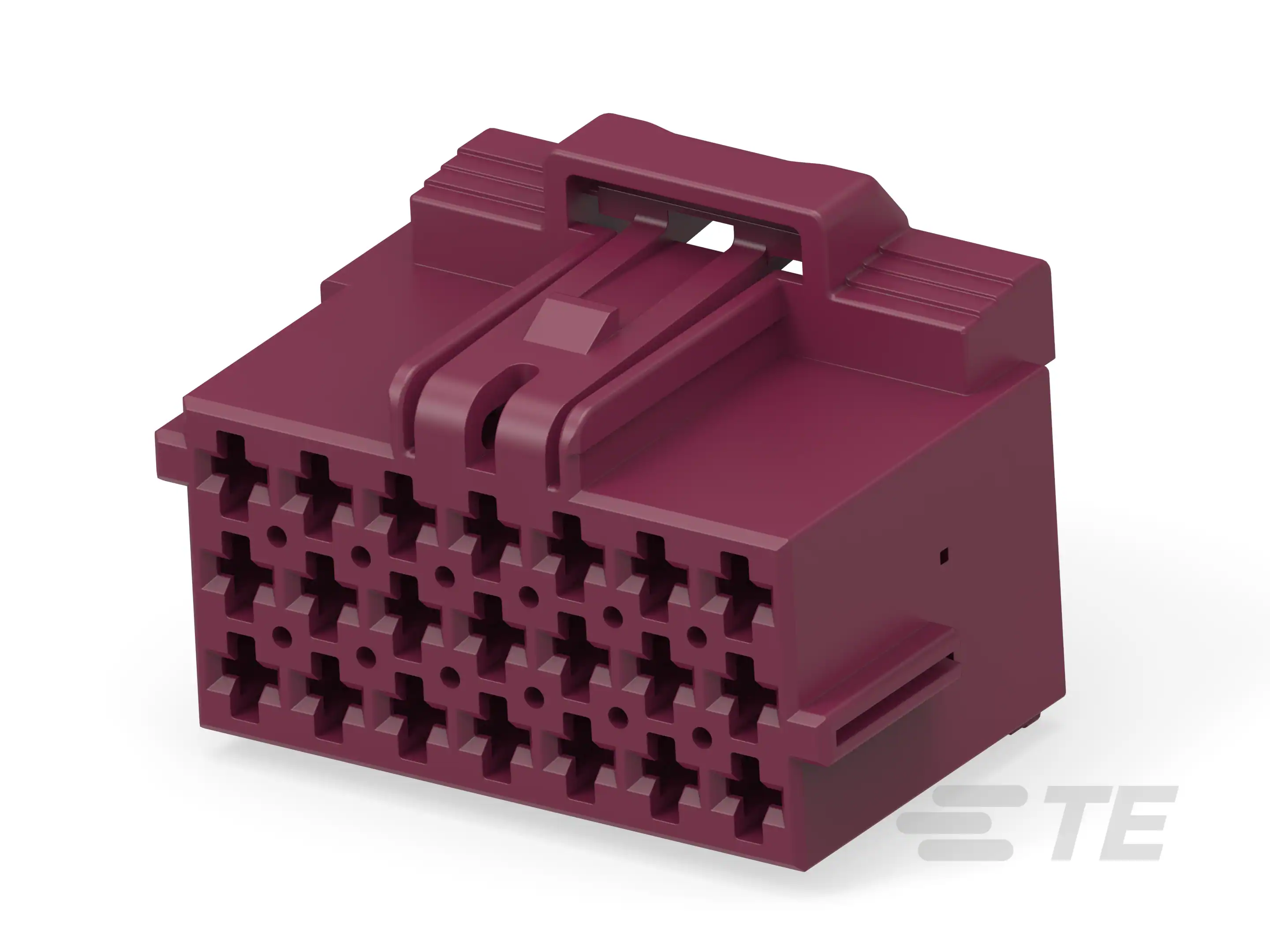

21POS,AMP MCP 2.8,REC HSG,UNSLD,COD D
4-2392850-1
ActiveTE Connectivity AMP Connectors
21POS,AMP MCP 2.8,REC HSG,UNSLD,COD D
Description
General part information
4-2392850-1
21 Position Housing, Housing for Female Terminals, Wire-to-Wire, 5 mm [.197 in] Centerline, Violet, Wire & Cable, Signal, Cable Mount (Free-Hanging)
Technical Specifications
Parameters and characteristics for this part
| Specification | 4-2392850-1 |
|---|---|
| Color | Violet |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Holder |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 21 |
| Number of Rows | 3 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.197 in |
| Row Spacing | 0.197 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
