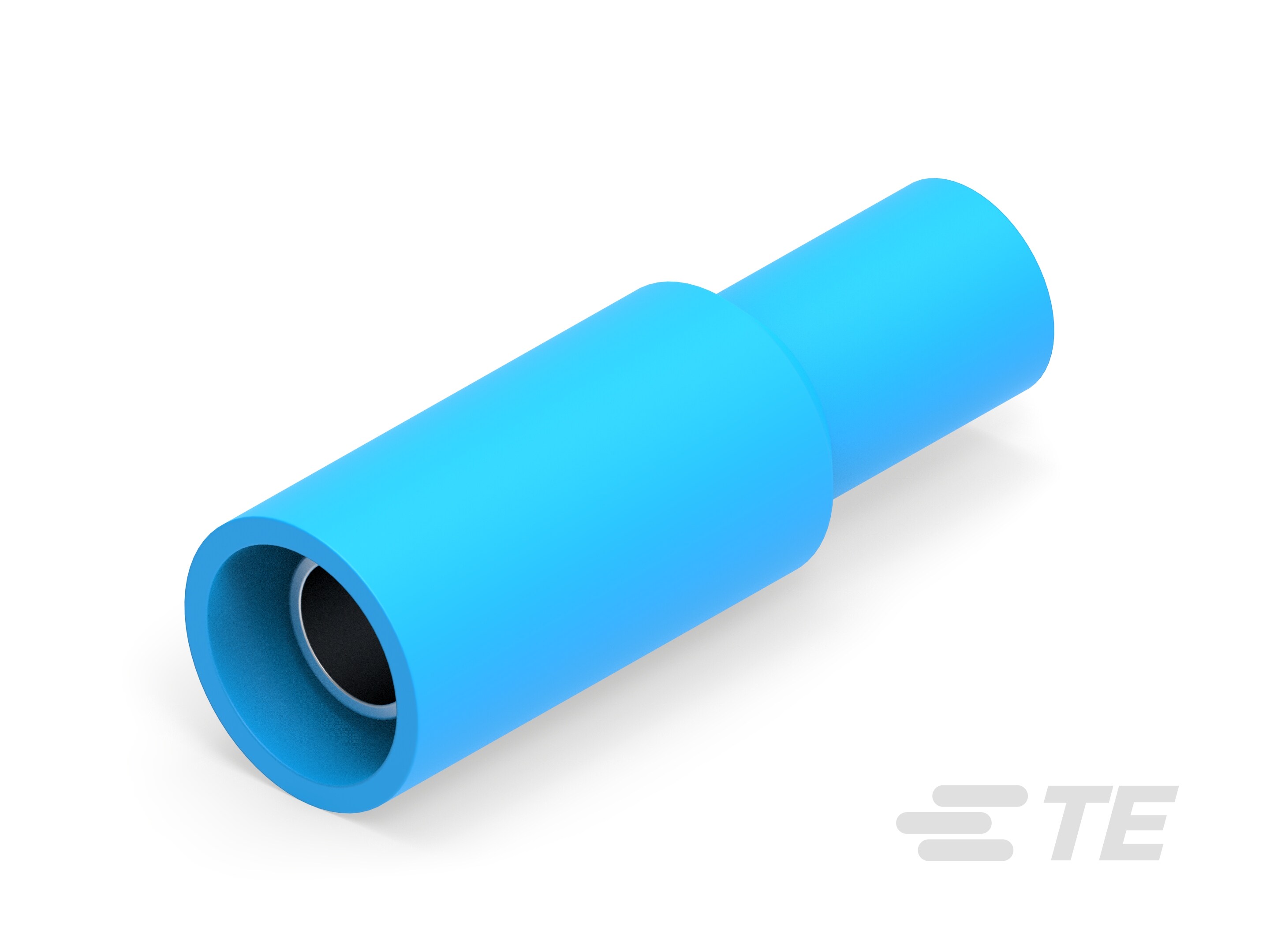

165400-1
NRNDTE Connectivity AMP Connectors
CONN RCPT 17-13-5AWG SHUR-PLUG
165400-1
NRNDTE Connectivity AMP Connectors
CONN RCPT 17-13-5AWG SHUR-PLUG
Description
General part information
165400-1
Shur-Plug Receptacle, 17 – 13 AWG, 1 – 2.5 mm² Wire, 2048 – 5178 CMA, Closed Barrel, Tin Plating, 24.7 mm [.972 in] Length, Box, Discrete Wire
Technical Specifications
Parameters and characteristics for this part
| Specification | 165400-1 |
|---|---|
| Color | Blue |
| Contact Finish | Tin |
| Contact Material | Brass |
| Diameter - Barrel | 0.18 in |
| Insulation | Fully Insulated |
| Length - Overall | 0.972 in |
| Terminal Type | Receptacle (Socket), Female |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 17 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
