NB21N50104JBB
ActiveKYOCERA AVX
THERM NTC 100KOHM 4160K 0603
NB21N50104JBB
ActiveKYOCERA AVX
THERM NTC 100KOHM 4160K 0603
Description
General part information
NB21N50104JBB

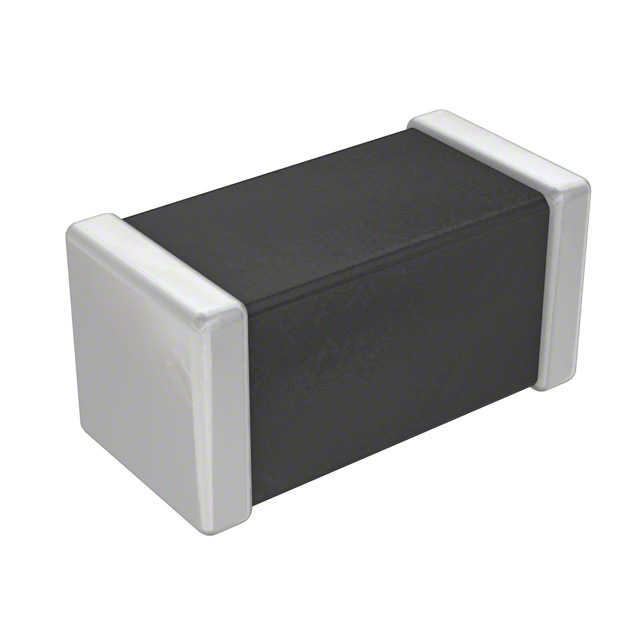

NTC Thermistor 100k 0603 (1608 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | NB21N50104JBB |
|---|---|
| B Value (25/85) | 4160 K |
| B Value Tolerance | 3 % |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Power - Max | 70 mW |
| Qualification | AEC-Q200 |
| Resistance (Ohms) | 100 kOhm |
| Resistance Tolerance (%) | 5 % |
