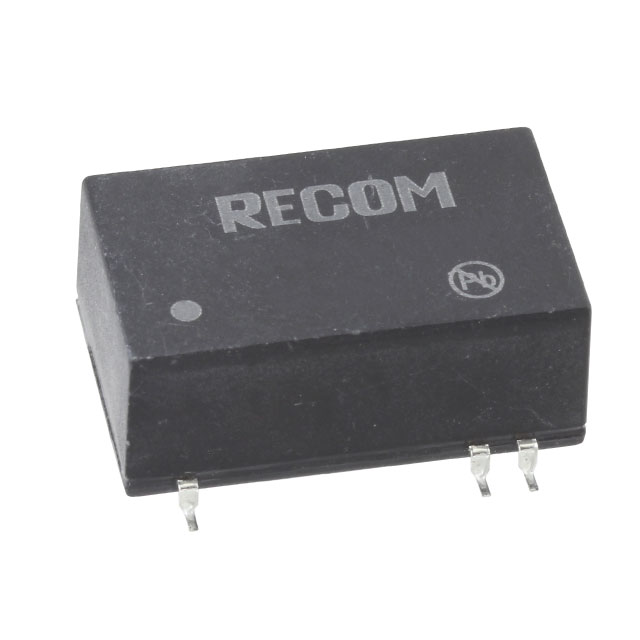

Specification	RW2-4809S/SMD

Applications	ITE (Commercial), Medical
Current - Output (Max)	222 mA
Features	SCP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package Leads	6 Leads
Package Name	16-SMD Module
Power (Watts)	2 w
Size / Dimension Height	0.4 in
Size / Dimension Length	0.95 in
Size / Dimension Width	0.57 in
Type	Isolated Module
Voltage - Input (Max)	72 V
Voltage - Input (Min)	36 V
Voltage - Isolation	1000 Vrms
Voltage - Output 1	9 V

RW2 Series

...

Part	Voltage - Output 1	Size / Dimension Width	Size / Dimension Length	Size / Dimension Height	Voltage - Isolation	Mounting Type	Applications	Type	Current - Output (Max)	Number of Outputs	Voltage - Input (Min)	Operating Temperature (Min)	Operating Temperature (Max)	Power (Watts)	Voltage - Output 2	Package Leads	Package Name	Voltage - Input (Max)	Features	Efficiency
Recom Power RW2-123.3D/B	3.3 V	0.49 in	0.87 in	0.33 in	1000 Vrms	Through Hole	ITE (Commercial) Medical	Isolated Module	250 mA	2	9 V	-40 °C	85 °C	2 w	-3.3 V	6 Leads	16-DIP Module	18 V	SCP
Recom Power RW2-2412S/H2/B	12 V	0.49 in	0.87 in	0.33 in	2000 V	Through Hole	ITE (Commercial) Medical	Isolated Module	166 mA	1	18 V	-40 °C	85 °C	2 w		6 Leads	16-DIP Module	36 V	SCP	83 %
Recom Power RW2-0509D/H3/SMD	9 V	0.57 in	0.95 in	0.4 in	3 kV	Surface Mount	ITE (Commercial) Medical	Isolated Module	111 mA	2	4.5 V	-40 °C	85 °C	2 w	-9 V	6 Leads	16-SMD Module	9 V	SCP	74 %
Recom Power RW2-0512S	12 V	0.57 in	0.95 in	0.38 in	1000 Vrms	Through Hole	ITE (Commercial) Medical	Isolated Module	166 mA	1	4.5 V	-40 °C	85 °C	2 w		6 Leads	16-DIP Module	9 V	SCP	75 %
Recom Power RW2-1212D/H2	12 V	0.57 in	0.95 in	0.38 in	2000 V	Through Hole	ITE (Commercial) Medical	Isolated Module	83 mA	2	9 V	-40 °C	85 °C	2 w	-12 V	6 Leads	16-DIP Module	18 V	SCP	80 %
Recom Power RW2-2415S/B	15 V	0.49 in	0.87 in	0.33 in	1000 Vrms	Through Hole	ITE (Commercial) Medical	Isolated Module	134 mA	1	18 V	-40 °C	85 °C	2 w		6 Leads	16-DIP Module	36 V	SCP	83 %
Recom Power RW2-243.3S/H2	3.3 V	0.57 in	0.95 in	0.38 in	2000 V	Through Hole	ITE (Commercial) Medical	Isolated Module	500 mA	1	18 V	-40 °C	85 °C	2 w		6 Leads	16-DIP Module	36 V	SCP	70 %
Recom Power RW2-053.3S	3.3 V	0.57 in	0.95 in	0.38 in	1000 Vrms	Through Hole	ITE (Commercial) Medical	Isolated Module	500 mA	1	4.5 V	-40 °C	85 °C	2 w		6 Leads	16-DIP Module	9 V	SCP	68 %
Recom Power RW2-4812D	12 V	0.57 in	0.95 in	0.38 in	1000 Vrms	Through Hole	ITE (Commercial) Medical	Isolated Module	83 mA	2	36 V	-40 °C	85 °C	2 w	-12 V	6 Leads	16-DIP Module	72 V	SCP	83 %
Recom Power RW2-1215S/H2	15 V	0.57 in	0.95 in	0.38 in	2000 V	Through Hole	ITE (Commercial) Medical	Isolated Module	134 mA	1	9 V	-40 °C	85 °C	2 w		6 Leads	16-DIP Module	18 V	SCP	80 %
