103361-3
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 5POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 103361-3 | 103361 Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin-Lead | Tin, Tin-Lead |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Length - Mating | 6.1 mm | 6.1 mm |
| Contact Length - Mating [x] | 0.24 in | 0.24 in |
| Contact Length - Post | 2.79 mm | 2.79 mm |
| Contact Length - Post [x] | 0.11 in | 0.11 in |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 3 A | 3 A |
| Fastening Type | Push-Pull | Push-Pull |
| Insulation Color | Black | Black |
| Insulation Height | 0.214 in | 0.214 in |
| Insulation Height | 5.44 mm | 5.44 mm |
| Insulation Material | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | - | 4 - 24 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 34 | $ 2.53 | |
| 68 | $ 2.51 | |||
| 102 | $ 2.30 | |||
| 340 | $ 2.29 | |||
| 850 | $ 2.08 | |||
| 1700 | $ 1.86 | |||
| 3400 | $ 1.72 | |||
103361 Series
CONN HEADER R/A 7POS 2.54MM
| Part | Insulation Height | Insulation Height | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Length - Mating | Contact Length - Mating [x] | Number of Rows | Mounting Type | Contact Material | Style | Insulation Color | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating | Pitch - Mating | Contact Type | Number of Positions Loaded | Termination | Current Rating (Amps) | Material Flammability Rating | Insulation Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Fastening Type | Contact Length - Post [x] | Contact Length - Post | Contact Shape | Contact Finish - Post | Shrouding | Contact Finish - Mating | Number of Positions | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 5-103361-5 | 0.214 in | 5.44 mm | 30 Áin | 0.76 Ám | 6.1 mm | 0.24 in | 1 | Through Hole, Right Angle | Phosphor Bronze | Board to Board, Cable | Black | -65 ░C | 105 ░C | 0.1 in | 2.54 mm | Male Pin | All | Solder | 3 A | UL94 V-0 | Thermoplastic | 2.54 µm | 100 µin | Push-Pull | 0.11 in | 2.79 mm | Square | Tin | Shrouded - 4 Wall | Gold | 7 | Header |
TE Connectivity AMP Connectors 5-103361-8 | 0.214 in | 5.44 mm | 30 Áin | 0.76 Ám | 6.1 mm | 0.24 in | 1 | Through Hole, Right Angle | Phosphor Bronze | Board to Board, Cable | Black | -65 ░C | 105 ░C | 0.1 in | 2.54 mm | Male Pin | All | Solder | 3 A | UL94 V-0 | Thermoplastic | 2.54 µm | 100 µin | Push-Pull | 0.11 in | 2.79 mm | Square | Tin | Shrouded - 4 Wall | Gold | 10 | Header |
TE Connectivity AMP Connectors 5-103361-2 | 0.214 in | 5.44 mm | 30 Áin | 0.76 Ám | 6.1 mm | 0.24 in | 1 | Through Hole, Right Angle | Phosphor Bronze | Board to Board, Cable | Black | -65 ░C | 105 ░C | 0.1 in | 2.54 mm | Male Pin | All | Solder | 3 A | UL94 V-0 | Thermoplastic | 2.54 µm | 100 µin | Push-Pull | 0.11 in | 2.79 mm | Square | Tin | Shrouded - 4 Wall | Gold | 4 | Header |
TE Connectivity AMP Connectors 103361-2 | 0.214 in | 5.44 mm | 30 Áin | 0.76 Ám | 6.1 mm | 0.24 in | 1 | Through Hole, Right Angle | Phosphor Bronze | Board to Board, Cable | Black | -65 ░C | 105 ░C | 0.1 in | 2.54 mm | Male Pin | All | Solder | 3 A | UL94 V-0 | Thermoplastic | 2.54 µm | 100 µin | Push-Pull | 0.11 in | 2.79 mm | Square | Tin-Lead | Shrouded - 4 Wall | Gold | 4 | Header |
TE Connectivity AMP Connectors 103361-1 | 0.214 in | 5.44 mm | 30 Áin | 0.76 Ám | 6.1 mm | 0.24 in | 1 | Through Hole, Right Angle | Phosphor Bronze | Board to Board, Cable | Black | -65 ░C | 105 ░C | 0.1 in | 2.54 mm | Male Pin | All | Solder | 3 A | UL94 V-0 | Thermoplastic | 2.54 µm | 100 µin | Push-Pull | 0.11 in | 2.79 mm | Square | Tin-Lead | Shrouded - 4 Wall | Gold | Header | |
TE Connectivity AMP Connectors 2-103361-2 | 0.214 in | 5.44 mm | 30 Áin | 0.76 Ám | 6.1 mm | 0.24 in | 1 | Through Hole, Right Angle | Phosphor Bronze | Board to Board, Cable | Black | -65 ░C | 105 ░C | 0.1 in | 2.54 mm | Male Pin | All | Solder | 3 A | UL94 V-0 | Thermoplastic | 2.54 µm | 100 µin | Push-Pull | 0.11 in | 2.79 mm | Square | Tin-Lead | Shrouded - 4 Wall | Gold | 24 | Header |
TE Connectivity AMP Connectors 1-103361-0 | 0.214 in | 5.44 mm | 30 Áin | 0.76 Ám | 6.1 mm | 0.24 in | 1 | Through Hole, Right Angle | Phosphor Bronze | Board to Board, Cable | Black | -65 ░C | 105 ░C | 0.1 in | 2.54 mm | Male Pin | All | Solder | 3 A | UL94 V-0 | Thermoplastic | 2.54 µm | 100 µin | Push-Pull | 0.11 in | 2.79 mm | Square | Tin-Lead | Shrouded - 4 Wall | Gold | 12 | Header |
TE Connectivity AMP Connectors 6-103361-0 | 0.214 in | 5.44 mm | 30 Áin | 0.76 Ám | 6.1 mm | 0.24 in | 1 | Through Hole, Right Angle | Phosphor Bronze | Board to Board, Cable | Black | -65 ░C | 105 ░C | 0.1 in | 2.54 mm | Male Pin | All | Solder | 3 A | UL94 V-0 | Thermoplastic | 2.54 µm | 100 µin | Push-Pull | 0.11 in | 2.79 mm | Square | Tin | Shrouded - 4 Wall | Gold | 12 | Header |
TE Connectivity AMP Connectors 5-103361-4 | 0.214 in | 5.44 mm | 30 Áin | 0.76 Ám | 6.1 mm | 0.24 in | 1 | Through Hole, Right Angle | Phosphor Bronze | Board to Board, Cable | Black | -65 ░C | 105 ░C | 0.1 in | 2.54 mm | Male Pin | All | Solder | 3 A | UL94 V-0 | Thermoplastic | 2.54 µm | 100 µin | Push-Pull | 0.11 in | 2.79 mm | Square | Tin | Shrouded - 4 Wall | Gold | 6 | Header |
TE Connectivity AMP Connectors 103361-3 | 0.214 in | 5.44 mm | 30 Áin | 0.76 Ám | 6.1 mm | 0.24 in | 1 | Through Hole, Right Angle | Phosphor Bronze | Board to Board, Cable | Black | -65 ░C | 105 ░C | 0.1 in | 2.54 mm | Male Pin | All | Solder | 3 A | UL94 V-0 | Thermoplastic | 2.54 µm | 100 µin | Push-Pull | 0.11 in | 2.79 mm | Square | Tin-Lead | Shrouded - 4 Wall | Gold | Header | |
TE Connectivity AMP Connectors 103361-4 | 0.214 in | 5.44 mm | 30 Áin | 0.76 Ám | 6.1 mm | 0.24 in | 1 | Through Hole, Right Angle | Phosphor Bronze | Board to Board, Cable | Black | -65 ░C | 105 ░C | 0.1 in | 2.54 mm | Male Pin | All | Solder | 3 A | UL94 V-0 | Thermoplastic | 2.54 µm | 100 µin | Push-Pull | 0.11 in | 2.79 mm | Square | Tin-Lead | Shrouded - 4 Wall | Gold | 6 | Header |
TE Connectivity AMP Connectors 7-103361-2 | 0.214 in | 5.44 mm | 30 Áin | 0.76 Ám | 6.1 mm | 0.24 in | 1 | Through Hole, Right Angle | Phosphor Bronze | Board to Board, Cable | Black | -65 ░C | 105 ░C | 0.1 in | 2.54 mm | Male Pin | All | Solder | 3 A | UL94 V-0 | Thermoplastic | 2.54 µm | 100 µin | Push-Pull | 0.11 in | 2.79 mm | Square | Tin | Shrouded - 4 Wall | Gold | 24 | Header |
TE Connectivity AMP Connectors 103361-8 | 0.214 in | 5.44 mm | 30 Áin | 0.76 Ám | 6.1 mm | 0.24 in | 1 | Through Hole, Right Angle | Phosphor Bronze | Board to Board, Cable | Black | -65 ░C | 105 ░C | 0.1 in | 2.54 mm | Male Pin | All | Solder | 3 A | UL94 V-0 | Thermoplastic | 2.54 µm | 100 µin | Push-Pull | 0.11 in | 2.79 mm | Square | Tin-Lead | Shrouded - 4 Wall | Gold | 10 | Header |
TE Connectivity AMP Connectors 1-103361-1 | 0.214 in | 5.44 mm | 30 Áin | 0.76 Ám | 6.1 mm | 0.24 in | 1 | Through Hole, Right Angle | Phosphor Bronze | Board to Board, Cable | Black | -65 ░C | 105 ░C | 0.1 in | 2.54 mm | Male Pin | All | Solder | 3 A | UL94 V-0 | Thermoplastic | 2.54 µm | 100 µin | Push-Pull | 0.11 in | 2.79 mm | Square | Tin-Lead | Shrouded - 4 Wall | Gold | 13 | Header |
TE Connectivity AMP Connectors 103361-6 | 0.214 in | 5.44 mm | 30 Áin | 0.76 Ám | 6.1 mm | 0.24 in | 1 | Through Hole, Right Angle | Phosphor Bronze | Board to Board, Cable | Black | -65 ░C | 105 ░C | 0.1 in | 2.54 mm | Male Pin | All | Solder | 3 A | UL94 V-0 | Thermoplastic | 2.54 µm | 100 µin | Push-Pull | 0.11 in | 2.79 mm | Square | Tin-Lead | Shrouded - 4 Wall | Gold | 8 | Header |
TE Connectivity AMP Connectors 6-103361-2 | 0.214 in | 5.44 mm | 30 Áin | 0.76 Ám | 6.1 mm | 0.24 in | 1 | Through Hole, Right Angle | Phosphor Bronze | Board to Board, Cable | Black | -65 ░C | 105 ░C | 0.1 in | 2.54 mm | Male Pin | All | Solder | 3 A | UL94 V-0 | Thermoplastic | 2.54 µm | 100 µin | Push-Pull | 0.11 in | 2.79 mm | Square | Tin | Shrouded - 4 Wall | Gold | 14 | Header |
Description
General part information
103361 Series

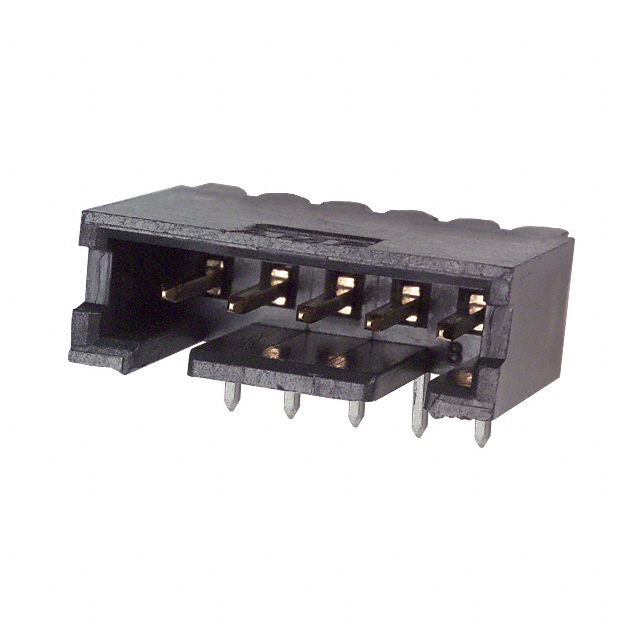

Connector Header Through Hole, Right Angle 5 position 0.100" (2.54mm)
