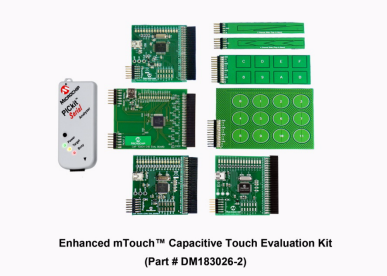

ENHANCED MTOUCH CAPACITIVE TOUCH EVALUATION KIT
DM183026-2
ObsoleteMicrochip Technology
ENHANCED MTOUCH CAPACITIVE TOUCH EVALUATION KIT
Description
General part information
DM183026-2
PIC16F CVD evaluation board
PIC18F CTMU evaluation board
PIC24F CTMU evaluation board
Technical Specifications
Parameters and characteristics for this part
| Specification | DM183026-2 |
|---|---|
| Contents | Accessories, Board, Cable |
| Embedded | Yes |
| Interface | I2C |
| Sensing Range | 12 Buttons/Keys, Sliders, 8 and 12 Buttons/Keys, 2 Sliders |
| Sensing Range - Buttons/Keys | 8, 12 |
| Sensing Range - Buttons/Keys | 8 |
| Sensing Range - Buttons/Keys Count | 8 |
| Sensing Range - Segment Linear Slider Count | 2 |
| Sensor Type | Touch, Capacitive |
| Supplied Contents | Cable(s), Accessories, Board(s) |
| Utilized IC / Part | PIC16F, PIC18F, PIC24F, PIC32MX |
| Voltage - Supply | 5 VDC |
| Voltage - Supply Type | USB |
